Tint Laminated Safety Glass-AS/NZS 2208: 1996, CE, ISO 9002

Tint Laminated Glass is one of the Safety Glass used in residential or commercial building. It is
1. Make-Up
1) Tint Float Glass with Clear PVB,such as Euro Grey Float Glass, Bronze Float Glass etc;
2) Clear Float Glass With Tint PVB, for example, White Translucent PVB, Grey PVB, Bronze PVB, Green PVB, Blue PVB and so on.
Due to limit availability of Tint Glass, most customers choose the 2) make-up.
2. Basic Glass
Glass sheet can be annealed, tempered with or without hole/cutouts, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silver mirror and painted glass.
3. Application
Door & Window, Skylight, Glass Roof, Headover, Balustrade, Sliding Door, Partition, Furniture, Wardrobe, Walk Road are some applications of Laminated Glass.

  • NEO GLASS
TINT LAMINATED GLASS --AS/NZS 2208: 1996, CE, ISO 9002


Simple Introduction

Tint Laminated Glass is one of the Safety Decorative Glass used indoor. The Tint Color can be from either Glass or Interlayer. Due to shortage availability of Tint Glass, the color of Tint Laminated Glass is mostly from the Tint PVB or SGP. Tint Laminated Glass is made of two sheets of clear glass or more with Tint PVB. That make-up let it have the property of stealing-resistant and glass anti-splash. That is why it is called safety glass. Besides,our Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP. The sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silver mirror and painted glass.


Our Laminated Glass is impacting resistant. It is not easily shattered. When it is broken, the small pieces of glass will not spread anywhere. They stick to the interlayer of that Laminated Glass. Besides, acoustic Laminated Glass can help reduce the noise outside. SGP Laminated Glass Has the property of Hurricane Resistance.


Colors Available

Clear, White Translcuent, Milky White, Opal, Green, Grey, Bronze, Blue, Fordblue etc are available. We can also match and provide you the color you want.

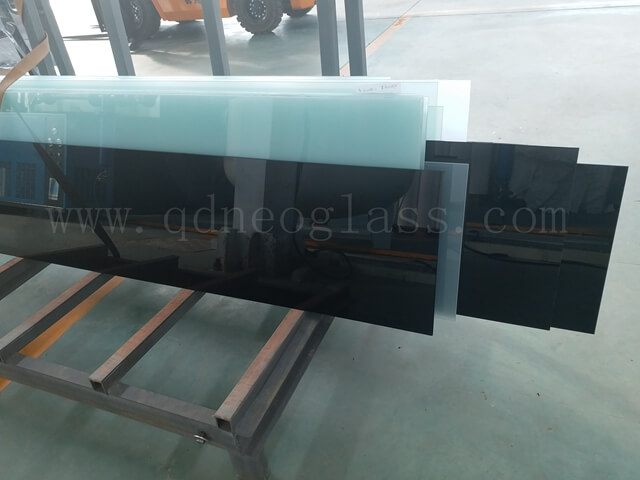

Cut to Size Black Laminated Glass

Milky White Laminated Glass,

                 Black Laminated Glass

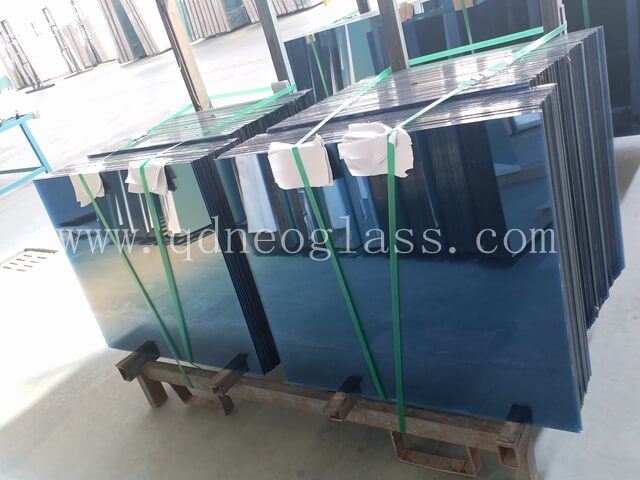

FordBlue Heat Strengthened Laminated Glass 3

Fordblue Reflective Laminated Glass

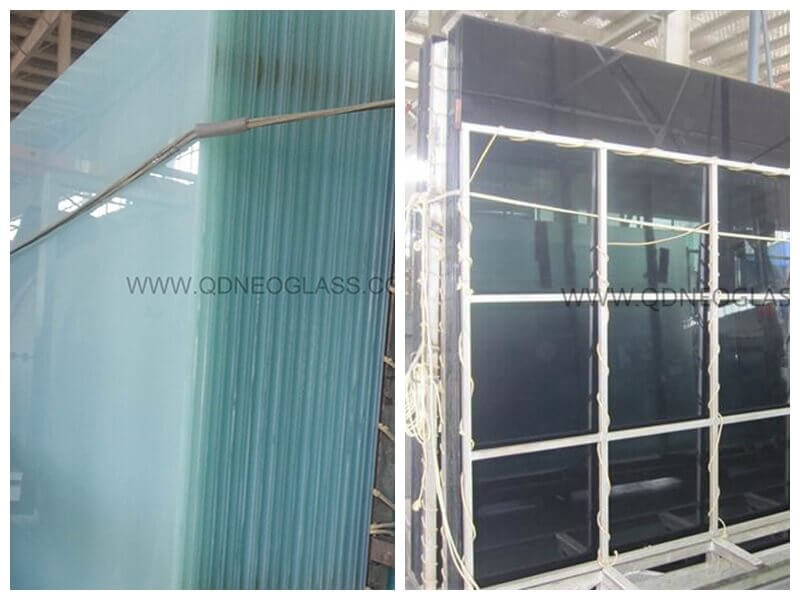

Tint LAMINATED GLASS

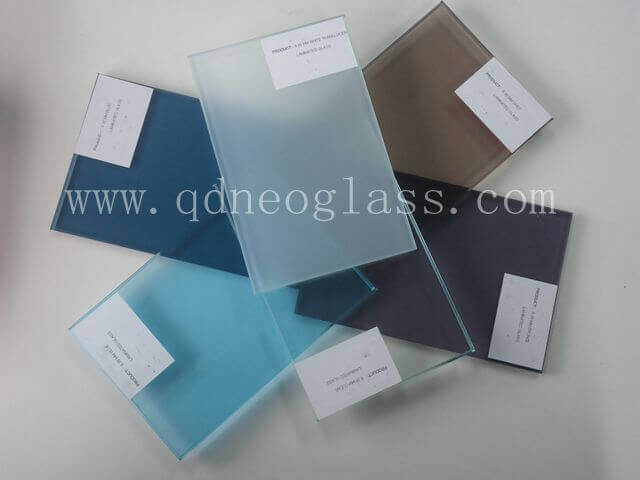

Color Laminated Glass


Custom-Made at Size and Shape

Big Size or Cut to Size are all welcome by the company.

We have a Laminted Glass Cutting Machine then big size laminated glass is produced then is cutted to be custom-made size by that cutting machine. That improves the production efficiency and lead time, but also low the cost.

Shapes at Rectangle, Square, Triangle or Trapezoid are workable.


Application

The comingout of Colorful PVB Laminated glass solves the shortage limit of Laminated Tint Float Glass. It can be used but be not limited as Door & Window, Housescreen Glass, Glass Roof, Headover, Balcony,Balustrade,Partition,Sliding door,Furniture, Step,Table, Cabinet, Wardrobe,wherever you would like to use.


Quality Control and Certificate


Our Laminated Glass is produced strictly in accordance with requirement of AS/NZS 2208: 1996, ISO and CE. They are popular in Australia and New Zealand Market, Europe, USA, Canada and South of America.


Grinded Clear Laminated Glass

Clear Balcony Laminated Glass

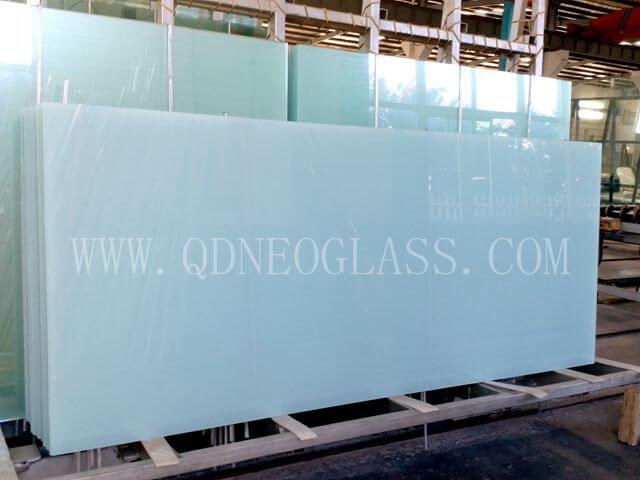

Opal White Laminated Glass

Milky White Laminated Door Glass

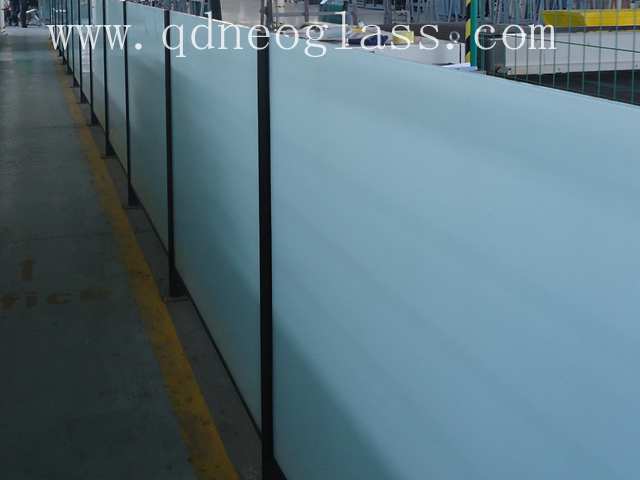

Laminated Glass Railing

Frosted Laminated Glass Railing

Feature

I.   Longer Lifetime, Less de-Lamination Rate

II.  High Quality of Raw Glass and PVB & Ionoplast Interlayer (SGP)

III. Flat items with Good Flatness control within 0.2%, even within 0.1% for small cut to size items

IV.Size Tolerance controlled:

            Within 1mm for Cut To Size and Raw Glass size( same color glass);

            Within 1mm for Cut To Size items 2000mm with Grinded Edges;

            Within 1.5mm for Cut To Size Items 3000mm with Grinded Edges;

V. Strict Control on Visible Defects and Chips

VI.Solutions of Breakage Problem in Transportation:

              1. Unique Professional & Stonge package--Plywood End Cap ,Plywood crate, Plywood A Frame, Metal Package etc;

           2. Container Loaded technology

VII.Thickness:  4.35-32.28mm;

     Size: Cut to Size, Custom-made, Max 18000mm



Translucent Laminated Glass For Wardrobe,Laminated Handrail Glass, Laminated Glass Facades, Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass, Milky White laminated Glass Door, White Translucent Laminated Glass, 2.7+0.38+2.7 Milky White Laminated Glass, 2.7+0.38+2.7 Laminated Glass, Grey Laminated Glass, Green Laminated Glass, Bronze Laminated Glass, blue Laminated Glass       PG Tint Laminated Glass,Laminated Handrail Glass, Laminated Glass Facades, Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass, Milky White laminated Glass Door, White Translucent Laminated Glass, 2.7+0.38+2.7 Milky White Laminated Glass, 2.7+0.38+2.7 Laminated Glass, Grey Laminated Glass, Green Laminated Glass, Bronze Laminated Glass, blue Laminated Glass   GREY LAMINATED Glass,Laminated Handrail Glass, Laminated Glass Facades, Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass, Milky White laminated Glass Door, White Translucent Laminated Glass, 2.7+0.38+2.7 Milky White Laminated Glass, 2.7+0.38+2.7 Laminated Glass, Grey Laminated Glass, Green Laminated Glass, Bronze Laminated Glass, blue Laminated Glass

On-Time Delivery


Delivery time for big size is in 10-18 days and for custom-made items in 18-28 days. If clients have special requirement on that, we would try our best to make some adjustment to satisfy with them.

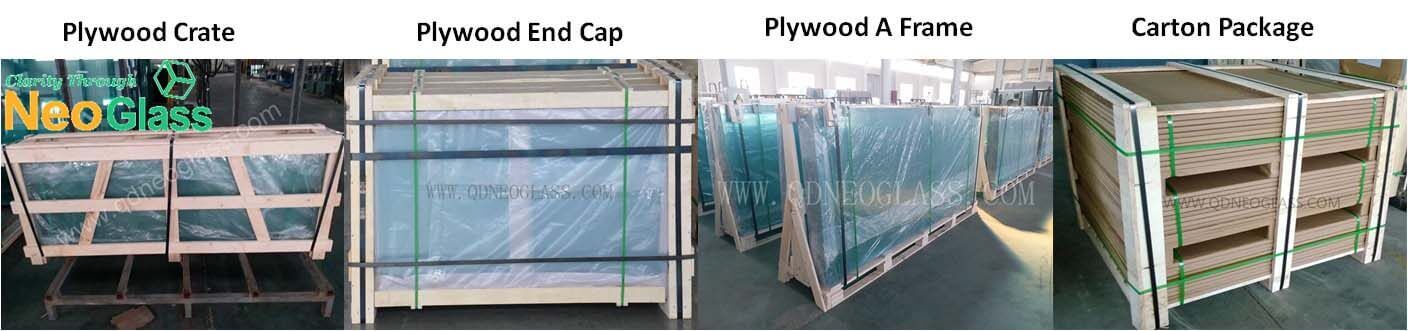

Strong Exporting Package For Long Ocean Transportation


OEM Package is available

Strong Package

Container Fasten


Size: Max. 18000 mm
Thickness: Min 4.38mm
Certificates: AS/NZS 2208: 1996, CE, ISO 9002
Raw Glass:   Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass
Glass Process:
           Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
           Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass
Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc
Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
                               or other brand appointed by customers
Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.
Interleave thickness:  PVB-0.38mm, 0.76mm,1.14mm, 1.52mm
                                       SGP-0.89mm, 1.52mm, 2.28mm
Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
                 Carton Package, Pallet Etc.
