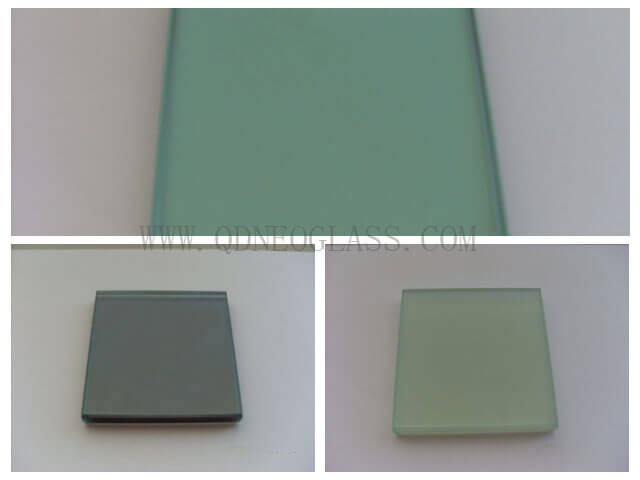

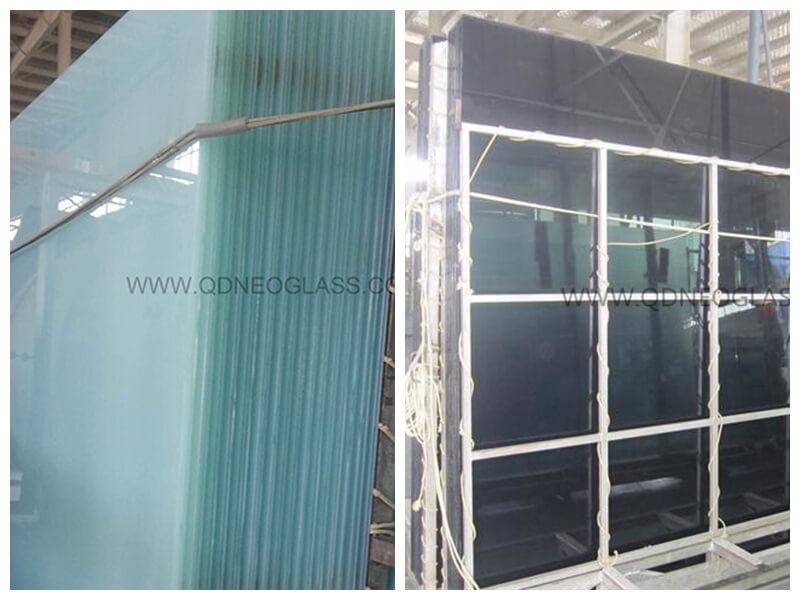

Tint Laminated Glass-AS/NZS 2208: 1996, CE, ISO 9002

Tint Laminated Glass is one of the Safety Glass used in residential or commercial building. Its make-up is
1) Tint Float Glass with Clear PVB,such as Euro Grey Float Glass, Bronze Float Glass etc;
2) Clear Float Glass With Tint PVB, for example, White Translucent PVB, Grey PVB, Bronze PVB, Green PVB, Blue PVB and so on.
3) Basic Glass are available at annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silver mirror and painted glass.

  • NEO GLASS
TINT LAMINATED GLASS --AS/NZS 2208: 1996, CE, ISO 9002

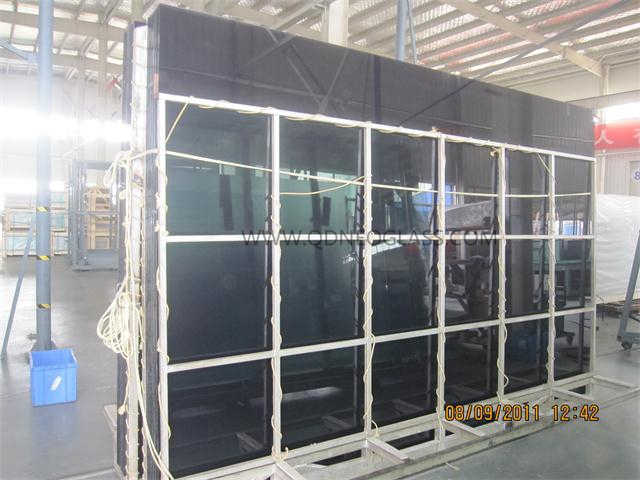

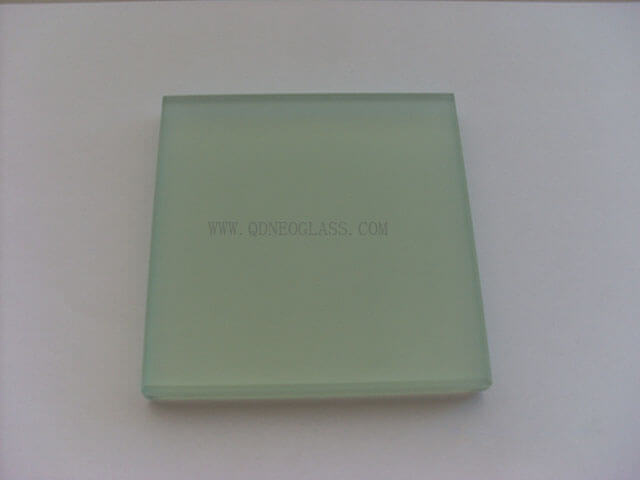

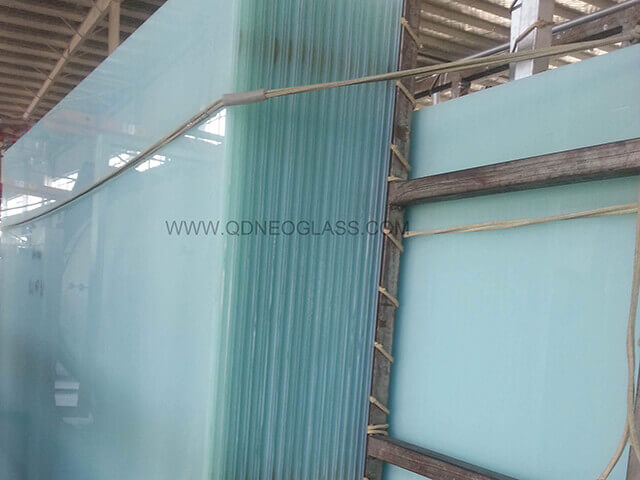

(White Translucent, Grey, Green, Bronze,Blue ...)

Brief Introduction

Laminated Glass is one of the Safety Glass used in residential or commercial building. It is made of two sheets of glass or more with PVB. It has the properties of stealing-resistant and glass anti-splash. That is why it is called safety glass.Besides,our Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP.  The two sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silvermirror and painted glass.



Due to the color of Float Glass or Glass Interlayer , Laminated Glass is available with various of colors besides of Clear Laminated Glass, such as White Translucent, Grey, Bronze, Blue, Green etc.


Process

Laminated Glass is processed mainly in three period. First of all, Pre-Laminating two sheets or more sheets of glass with PVB or SGP; Then Cooking Pre-Laminated Glass on Autoclave with Pressure about 13 PA and High Temperature around 135℃ ; the last step is Packing.If it is Tempered Laminated Glass, certainly the glass should be toughened firstly before pre-laminating. The Tempered Glass conbining to Laminated Glass can be processed with Polished Edges,Holes, Cut-Outs or in Irregular Shape.

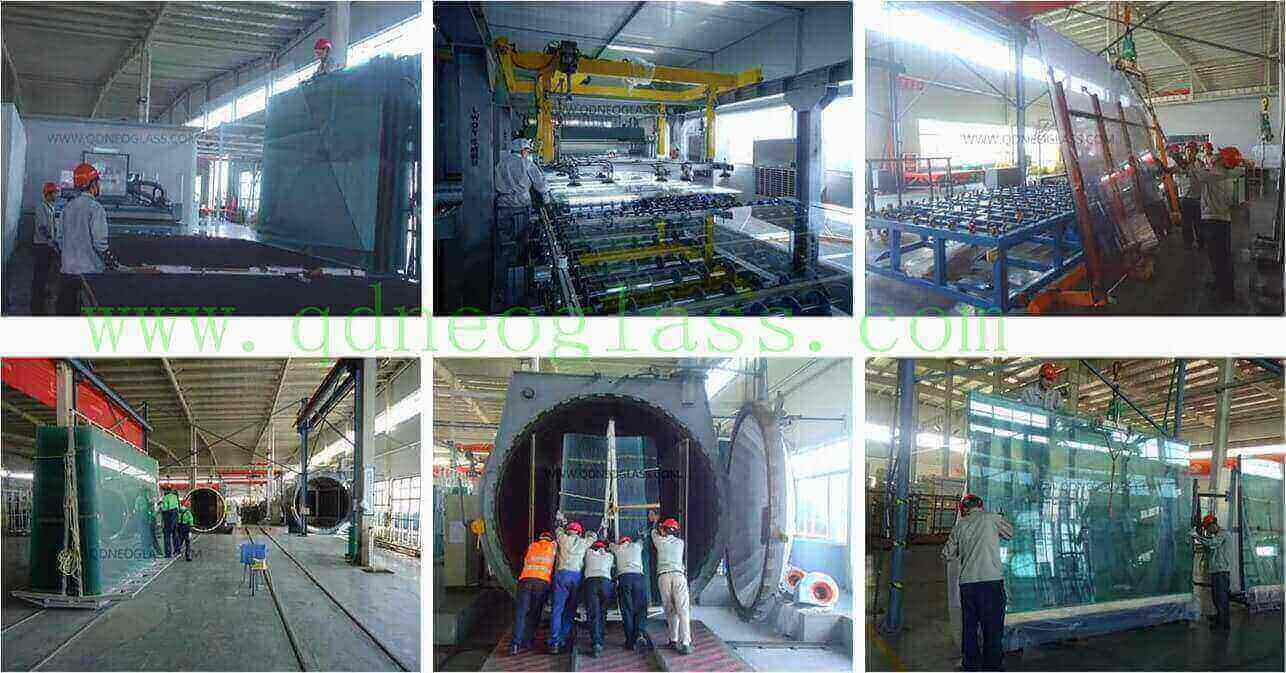

Laminated Glass Process

Application


Laminated glass can be used as Curtain Wall, Door & Window, Roof, Balcony,Balustrade,Partition, Step,Table, Cabinet, Wardrobe,Sliding Door,wherever you would like to use.

Quality Control System


Tint Laminated Glass is made under strict Qualty Control System. They are not allowed to be delivered with quality problem.

With certificates of AS/NZS 2208: 1996, ISO and CE, the glass is popular in Australia and New Zealand Market, Europe, USA, Canada and South of America

Planible G WHITE TRANSLUCENT LAMINATED GLASS, Hard Coated Low E Laminated Glass, Laminated on-line Low E Laminated Glass, Energy Efficiency Laminated Safety Glass,Laminated Glass room dividers,Laminated Glass barn doors, Laminated Glass swing doors    Translucent Laminated Safety Glass,Milky White Laminated Glass, Ceramic White Laminated Glass, Polar White Laminated Glass,Laminated Glass room dividers,Laminated Glass barn doors, Laminated Glass swing doors   Grey PVB Laminated Safety Glass, Laminanted Euro Grey Float Glass, Blue PVB Laminated Glass, Green PVB Laminated Glass, Fordblue PVB Laminated Glass, Bronze PVB Laminated Glass,Laminated Glass room dividers,Laminated Glass barn doors, Laminated Glass swing doors

Feature

I.   Longer Lifetime, Less de-Lamination Rate

II.  High Quality of Raw Glass and PVB & Ionoplast Interlayer (SGP)

III. Flat items with Good Flatness control within 0.2%, even within 0.1% for small cut to size items

IV.Size Tolerance controlled:

            Within 1mm for Cut To Size and Raw Glass size( same color glass);

            Within 1mm for Cut To Size items 2000mm with Grinded Edges;

            Within 1.5mm for Cut To Size Items 3000mm with Grinded Edges;

V. Strict Control on Visible Defects and Chips

VI.Solutions of Breakage Problem in Transportation:

            Unique Professional & Stonge package

                   --Plywood End Cap ,Plywood crate, Plywood A Frame, Metal Package etc;

            Container Loaded technology

VII.Thickness:  4.35-32.28mm;

     Size: Cut to Size, Custom-made, Max 18000mm


On-Time Delivery


Delivery time for big size is in 10-18 days and for custom-made items in 18-28 days. If clients have special requirement on that, we would try our best to make some adjustment to satisfy with them.


Strong Exporting Package and Professional Container Loading Fasten


To ensure Tint Laminated Glass delivered in well condition is one of our responsibilities. In order to accomplish it, we use High Quality material to make package, and our loading team studies how each case of glass should be loaded safely onto the container before order is confirmed.

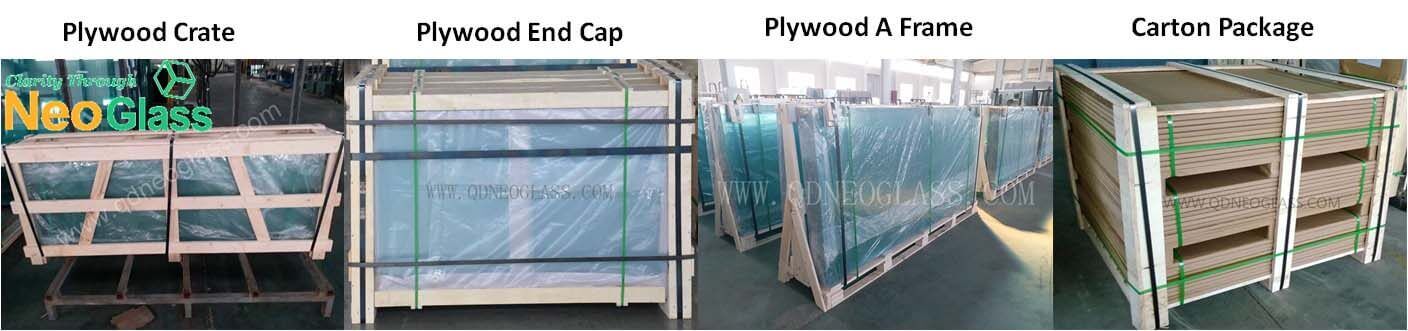

Tint Laminated Glass Strong Package

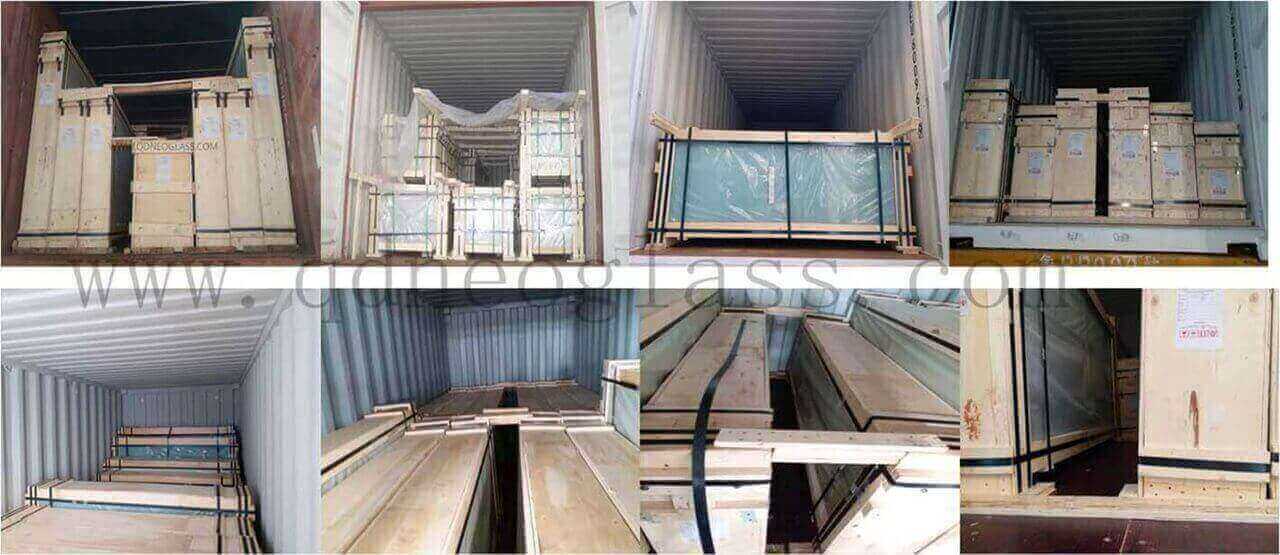

Tint Laminated Glass Container Fasten



Size: Max. 18000 mm, custom-made is welcome
Thickness: Min 4.38mm
Certificates: AS/NZS 2208: 1996, CE, ISO 9002
Raw Glass:   Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass
Glass Process:
           Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
           Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass
Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc
Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
                               or other brand appointed by customers
Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.
Interleave thickness:  PVB-0.38mm, 0.76mm,1.14mm, 1.52mm
                                       SGP-0.89mm, 1.52mm, 2.28mm
Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
                 Carton Package, Pallet Etc.
