NEO GLASS
Simple Introduction

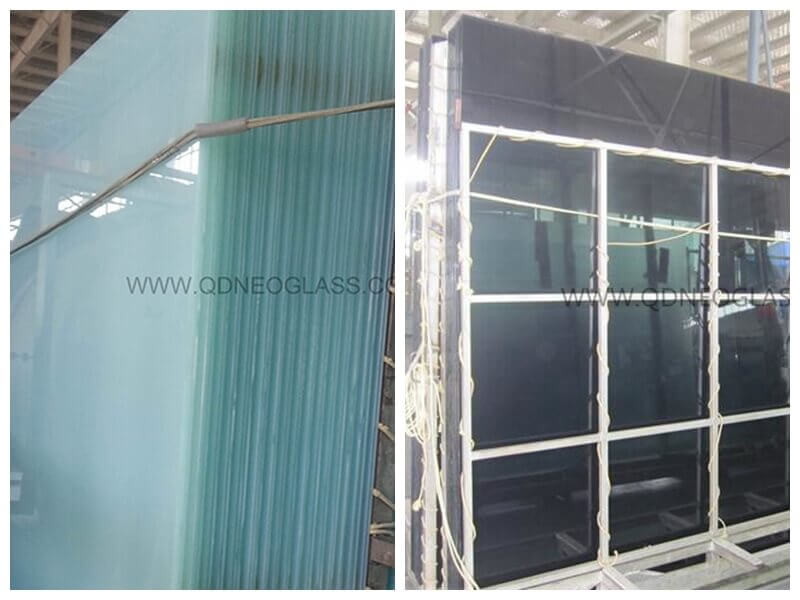

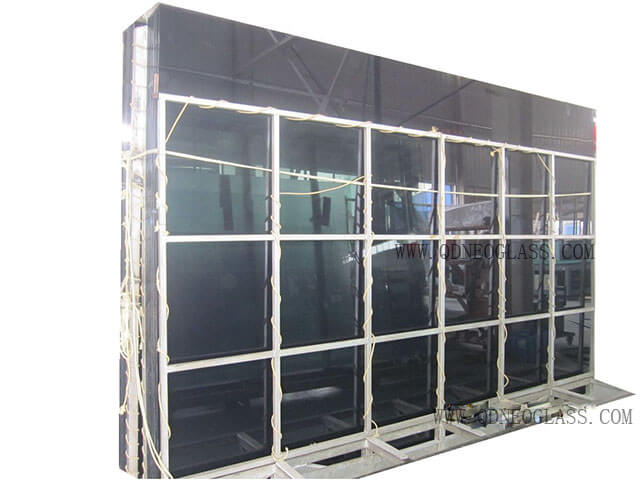

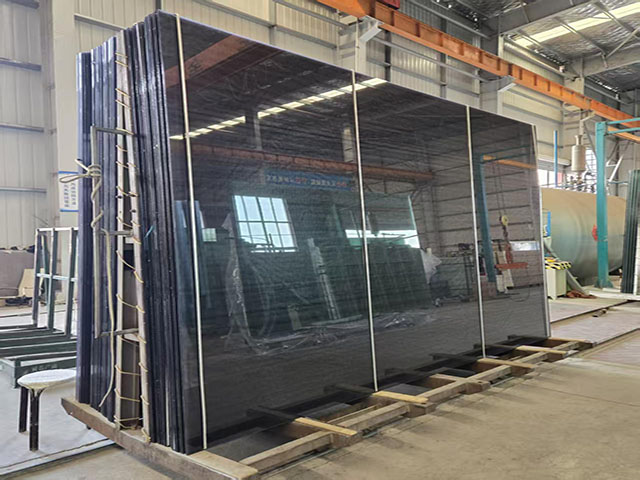

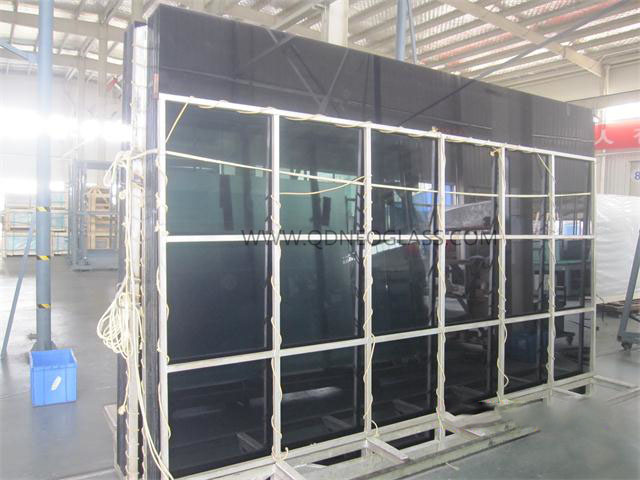

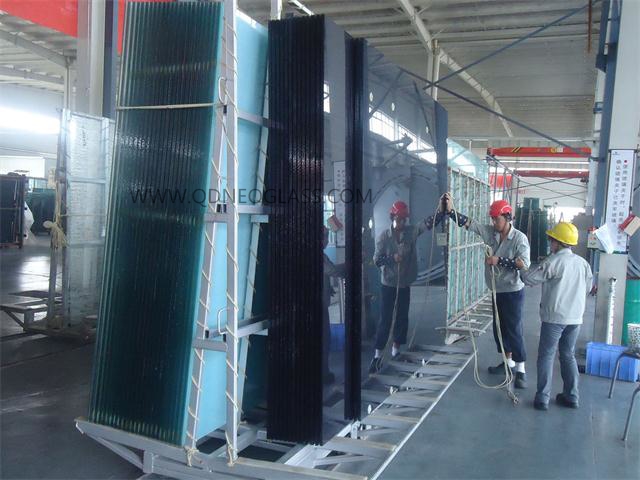

Grey Laminated Glass is one of the Safety Glass used in residential or commercial building. It is made of Euro Grey Float Glass, Clear Float Glass with Clear PVB or Clear Float Glass with Grey PVB. That is up to customers' choices. The make-up of Laminated Glass let it have the property of stealing-resistant and glass anti-splash. That is why it is called safety glass. Besides,our Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP. The sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silver mirror and painted glass

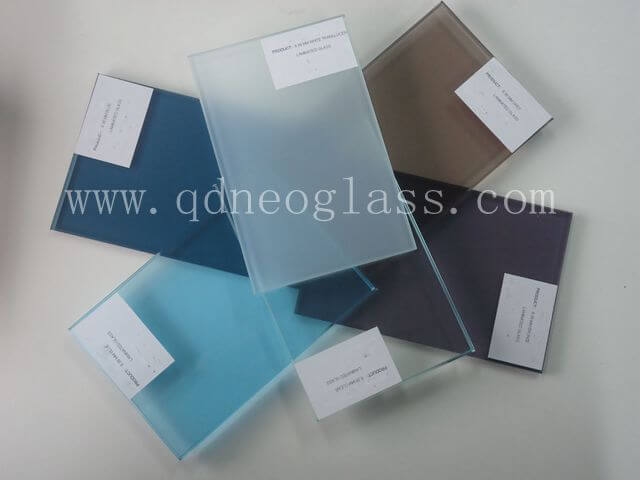

Custom-Made Colors
 |  |  |
Process

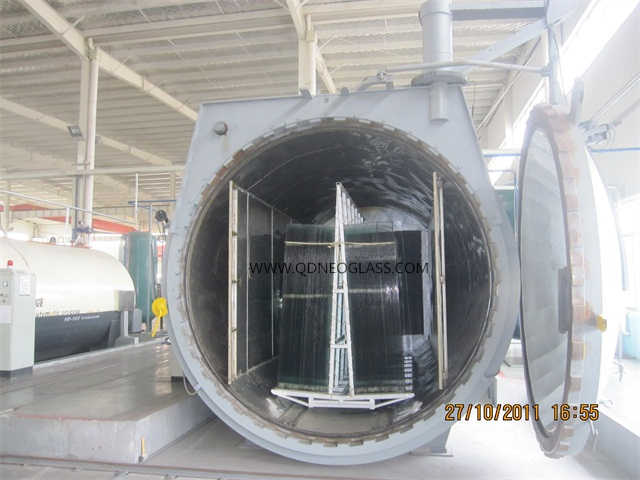

Laminated Glass is processed mainly in three period. First of all, Pre-Laminating two sheets or more sheets of glass with PVB or SGP; Then Cooking Pre-Laminated Glass on Autoclave with Pressure about 13 PA and High Temperature around 135℃ ; the last step is Packing.If it is Tempered Laminated Glass, certainly the glass should be toughened firstly before pre-laminating. The Tempered Glass conbining to Laminated Glass can be processed with Polished Edges,Holes, Cut-Outs or in Irregular Shape.

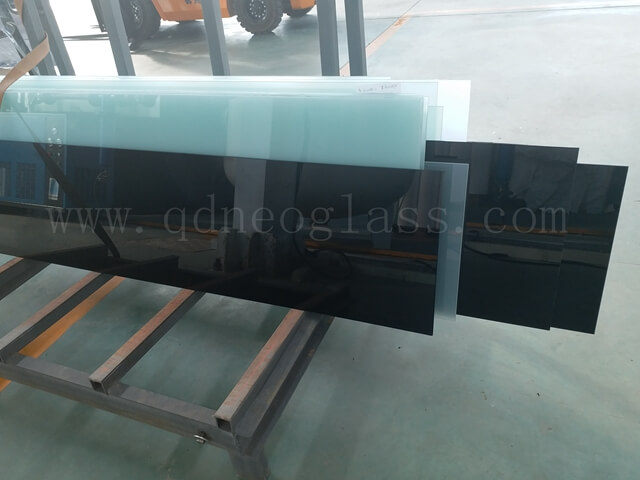

Custom-Made Sizes
We have Laminated Cutting Machine to cut big size Laminated Glass to be custom-made sizes or Shape. That machine not only improve the production effieciency on Cut To Size Laminated Glass, but also low its cost. Laminated Cutting Machine prompt the delivery time, and also makes final Laminated Glass Size more accurate compared to cutting Laminated Glass by Hand-made.

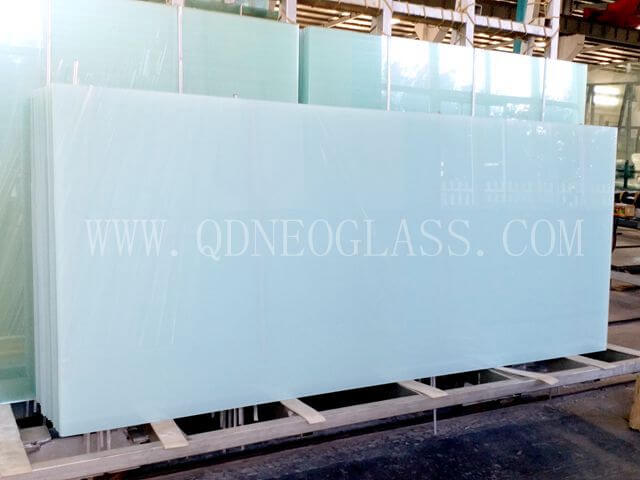

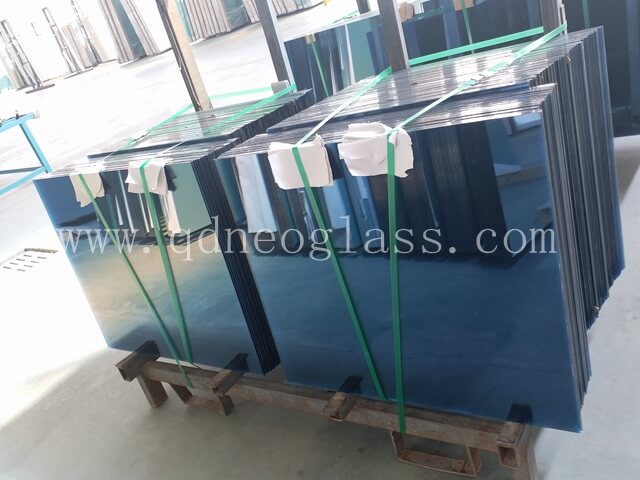

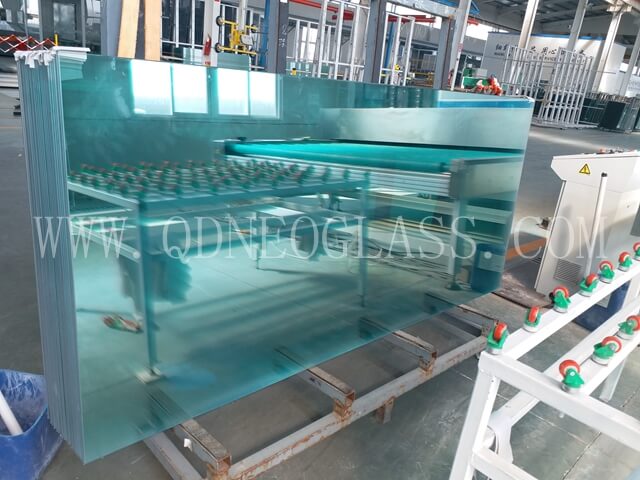

 Milky White Laminated Glass Door |  Grinded Clear Laminated Glass Balcony |  Forblue Heat Strengthened Laminated Balustrade Glass |
Applications
The glass can be used as Curtain Wall, Door & Window, Roof, Balcony,Balustrade,Partition, Step,Table, Cabinet, Wardrobe,Sliding Door wherever you would like to use.

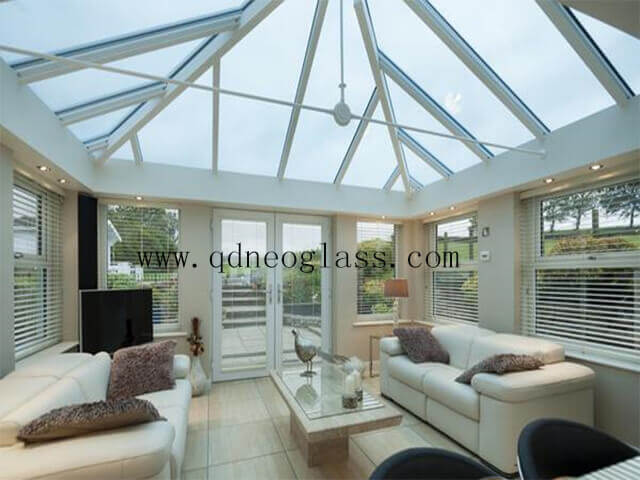

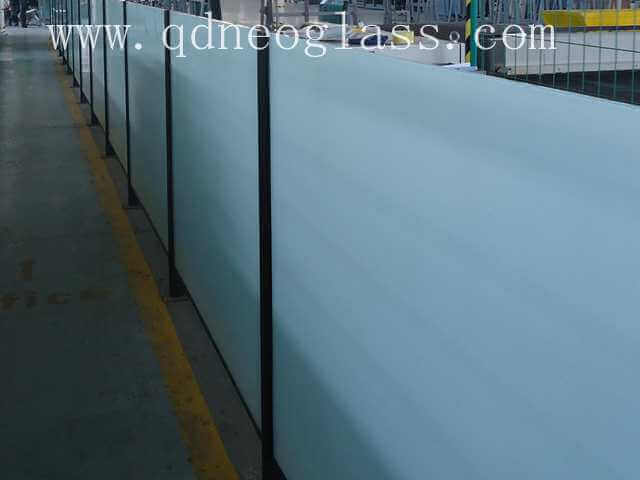

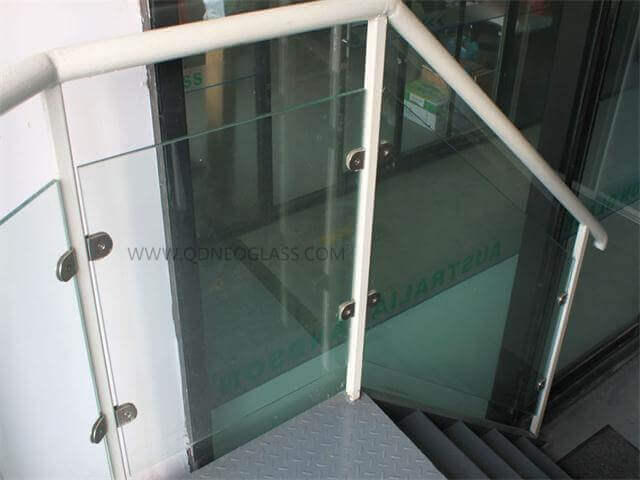

 Laminated Glass Roof |  OEM Laminated Fencing Glass |  Tempered Laminated Glass Balustrade |
Quality Control System
We produce Grey Laminated Glass according to AS/NZS 2208: 1996, ISO and CE strictly. We treat Quality as important as the life.
Feature
I. Longer Lifetime, Less de-Lamination Rate
II. High Quality of Raw Glass and PVB & Ionoplast Interlayer (SGP)

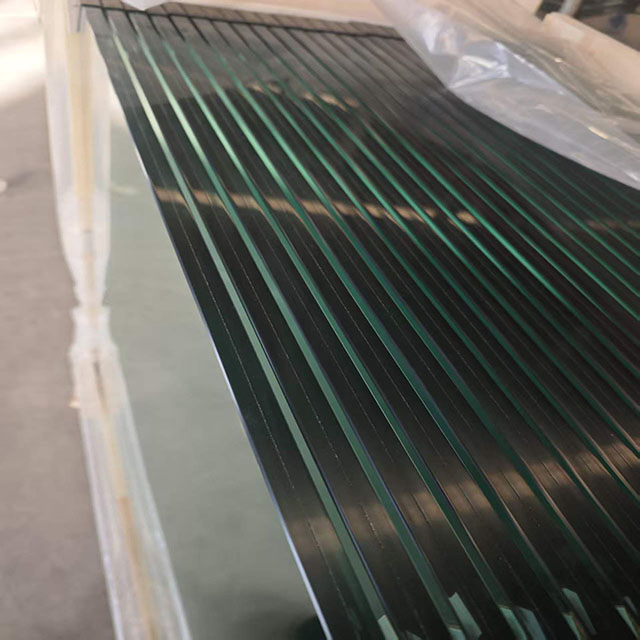

III. Flat items with Good Flatness control within 0.2%, even within 0.1% for small cut to size items
IV.Size Tolerance controlled:
Within 1mm for Cut To Size and Raw Glass size( same color glass);
Within 1mm for Cut To Size items 2000mm with Grinded Edges;
Within 1.5mm for Cut To Size Items 3000mm with Grinded Edges;
V. Strict Control on Visible Defects and Chips
VI.Solutions of Breakage Problem in Transportation:
1. Unique Professional & Stonge package--Plywood End Cap ,Plywood crate, Plywood A Frame, Metal Package etc;
2. Container Loaded technology
VII.Thickness: 4.35-32.28mm;
Size: Cut to Size, Custom-made, Max 18000mm
On-Time Delivery
Delivery time for big size is in 10-18 days and for custom-made items in 18-28 days. If clients have special requirement on that, we would try our best to make some adjustment to satisfy with them.

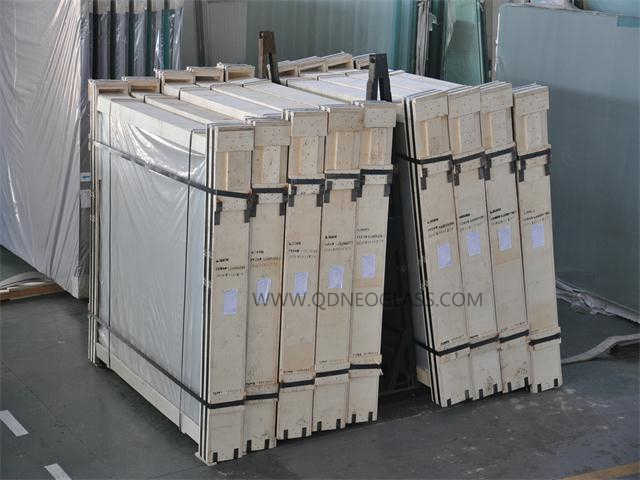

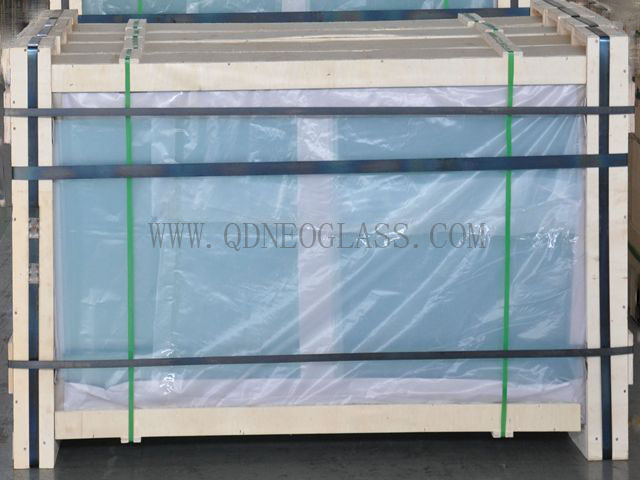

Safety Exporting Package
Our package can be custom-made. We use high quality of material to make sure all glass is protected well when customers receive it after long time transportation.
Professional Container Loading Fasten
Our professional loading Team ensure glass is fastened 100% strong.
Size: Max. 18000 mm
Thickness: Min 4.38mm
Certificates: AS/NZS 2208: 1996, CE, ISO 9002
Raw Glass: Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass
Glass Process:
Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass
Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc
Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
or other brand appointed by customers
Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.
Interleave thickness: PVB-0.38mm, 0.76mm,1.14mm, 1.52mm
SGP-0.89mm, 1.52mm, 2.28mm

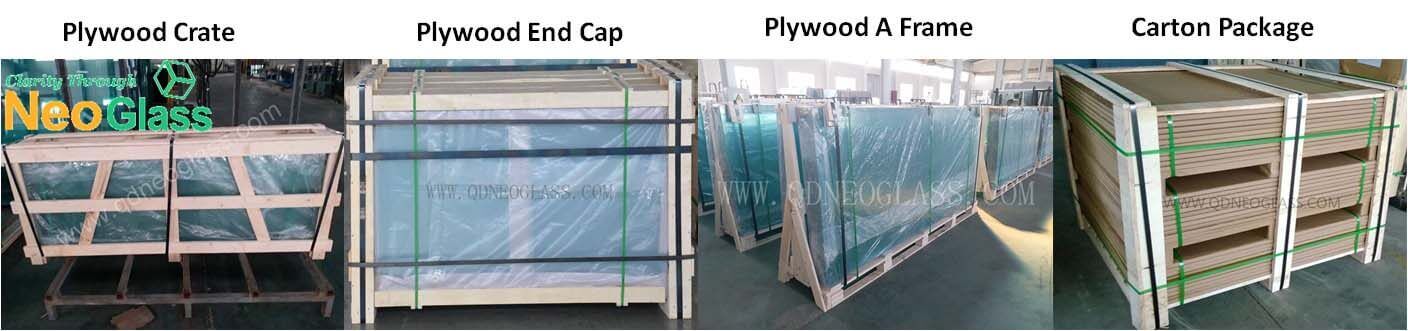

Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
Carton Package, Pallet Etc.
