Clear Laminated Glass-AS/NZS 2208: 1996, CE, ISO 9002

Clear Laminated Glass is one of the Safety Glass used in residential or commercial building.
1. Make-Up
It is made of two sheets of Clear Float Glass or more with Clear PVB.
2. Property
That make-up let it have the property of stealing-resistant and glass anti-splash.
3. Basic Glass
The sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silver mirror and painted glass.
4. Application
Laminated Safety Glass is widely used on Glass Wall, Balcony Glass, Glass Railing, Stair Railing, Balustrade Glass, Glass Fencing, Fence Glass,Door & Window, House Roof, Partition, Wardrobe etc

  • NEO GLASS
CLEAR LAMINATED GLASS --AS/NZS 2208: 1996, CE, ISO 9002


Laminated Glass is one of the Safety Glass used in residential or commercial building. It is made of two sheets of glass or more with PVB. That make-up let it have the property of stealing-resistant and glass anti-splash. That is why it is called safety glass.Besides,our Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP.  The two sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silvermirror and painted glass. Laminated Safety Glass is widely used on Glass Wall, Balcony Glass, Glass Railing, Stair Railing, Balustrade Glass, Glass Fencing, Fence Glass,Door & Window, House Roof etc. Custom-Made is available.

Due to the color of Float Glass or Glass Interlayer , Laminated Glass is available with various of colors besides of Clear Laminated Glass, such as White Translucent, Grey, Bronze, Blue, Green etc.

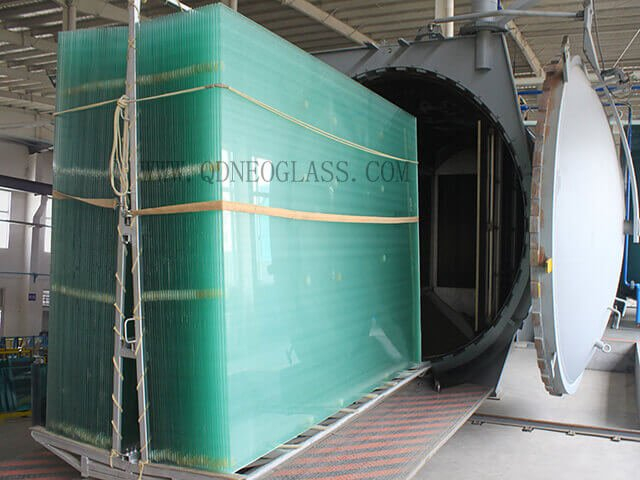

Laminated Glass is processed mainly in three period. First of all, Pre-Laminating two sheets or more sheets of glass with PVB or SGP; Then Cooking Pre-Laminated Glass on Autoclave with Pressure about 13 PA and High Temperature around 135℃ ; the last step is Packing.If it is Tempered Laminated Glass, certainly the glass should be toughened firstly before pre-laminating. The Tempered Glass conbining to Laminated Glass can be processed with Polished Edges,Holes, Cut-Outs or in Irregular Shape.

We have a Laminated Glass Cutting Machine to cut our big Laminated Glass to be small size. That machine is more efficiency in the cutting than it does by hand-man. Then delivery time is faster.

The glass can be used as Curtain Wall, Door & Window, Roof, Balcony,Balustrade,Partition, Step,Table, Cabinet, Wardrobe,wherever you would like to use


With certificates of AS/NZS 2208: 1996 and CE, the glass is popular in Australia and New Zealand Market, Europe, USA, Canada and South of America.


Neo Laminated Glass has features as below:


I.   Longer Lifetime, Less de-Lamination Rate

II.  High Quality of Raw Glass and PVB & Ionoplast Interlayer (SGP)

III. Flat items with Good Flatness control within 0.2%, even within 0.1% for small cut to size items

IV.Size Tolerance controlled:

            Within 1mm for Cut To Size and Raw Glass size( same color glass);

            Within 1mm for Cut To Size items 2000mm with Grinded Edges;

            Within 1.5mm for Cut To Size Items 3000mm with Grinded Edges;

V. Strict Control on Visible Defects and Chips

VI.Solutions of Breakage Problem in Transportation:

            Unique Professional & Stonge package

                   --Plywood End Cap ,Plywood crate, Plywood A Frame, Metal Package etc;

            Container Loaded technology

VII.Thickness:  4.35-32.28mm;

     Size: Cut to Size, Custom-made, Max 18000mm

Clear Tripe Tempered Laminated Glass For Anti-Hurricane and Securtiy,Laminated Handrail Glass, Laminated Glass Facades,Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass,Laminated Handrail Glass, Laminated Glass Facades, Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass, Milky White laminated Glass Door, White Translucent Laminated Glass, 2.7+0.38+2.7 Milky White Laminated Glass, 2.7+0.38+2.7 Laminated Glass, Grey Laminated Glass, Green Laminated Glass, Bronze Laminated Glass, blue Laminated Glass

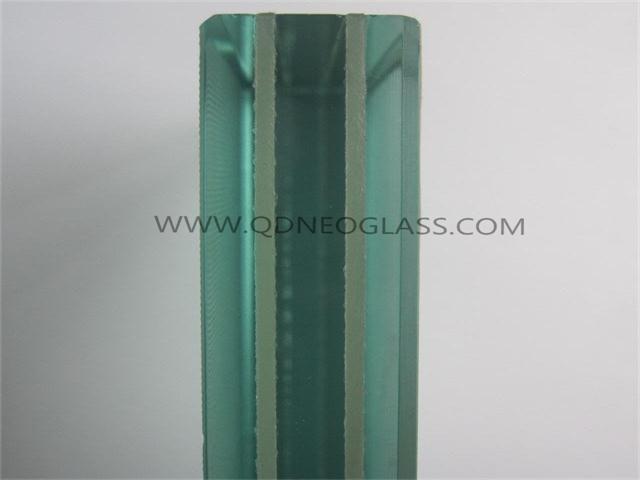

   Clear Triple Tempered Laminated Glass


Polished Toughened Laminated Glass for Pool Fencing Glass, Balcony Railing Glass, Balustrade Glass, Partition Glass, Wardrobe Glass, Roof Glass, House Glass, Custom-Made Laminated Safety Glass,Laminated Handrail Glass, Laminated Glass Facades,Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass,Laminated Handrail Glass, Laminated Glass Facades, Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass, Milky White laminated Glass Door, White Translucent Laminated Glass, 2.7+0.38+2.7 Milky White Laminated Glass, 2.7+0.38+2.7 Laminated Glass, Grey Laminated Glass, Green Laminated Glass, Bronze Laminated Glass, blue Laminated Glass

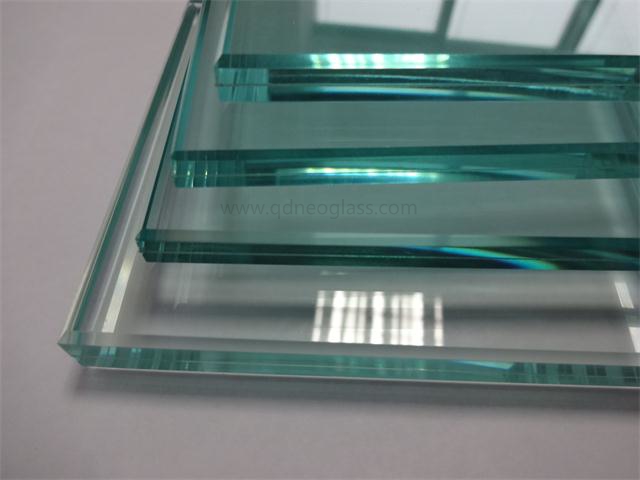

Clear Polished Cut To Size Laminated Glass


Tint Laminated Glass-Grey laminated Glass, White Translucent Laminated Glass, Glass Fence, Fencing Glass, Glass Roof, Glass House, Shopping Mall Front Glass, Blacony Glass, Balustrade Glass, Pool Fencing Glass, Sliding Door Glass, Partition Glass Wall, Door & Window Glass, Reception Glass Table, Curtain Glass Wall,Laminated Handrail Glass, Laminated Glass Facades,Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass,Laminated Handrail Glass, Laminated Glass Facades, Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass, Milky White laminated Glass Door, White Translucent Laminated Glass, 2.7+0.38+2.7 Milky White Laminated Glass, 2.7+0.38+2.7 Laminated Glass, Grey Laminated Glass, Green Laminated Glass, Bronze Laminated Glass, blue Laminated Glass

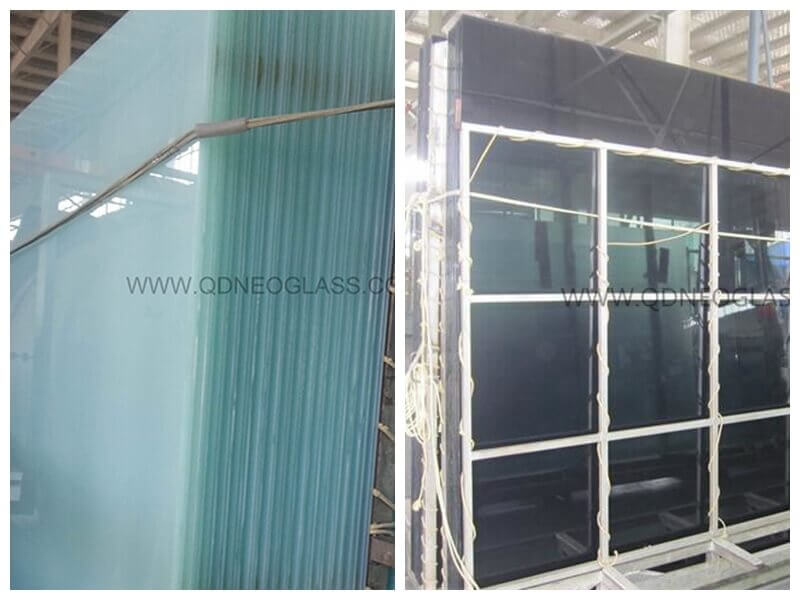

Tint PVB Laminated Glass

    -White Translucent,Grey,Green,Blue,Black etc


Size: Max. 18000 x3660 mm, custom-made sizes are available
Thickness: Min 4.38mm
Certificates: AS/NZS 2208: 1996, CE, ISO 9002
Raw Glass:   Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass
Glass Process:
           Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
           Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass
Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc
Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
                           or other brand appointed by customers
Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.
Interleave thickness:  PVB-0.38mm, 0.76mm,1.14mm, 1.52mm
                                 SGP-0.89mm, 1.52mm, 2.28mm
Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
              Carton Package, Pallet Etc.


We have a Laminated Glass Cutting Machine to cut our big Laminated Glass to be small size. That machine is more efficiency in the cutting than it does by hand-man. Then delivery time is faster.
