Heat Strengthened Laminated Glass-AS/NZS 2208: 1996, CE, ISO 9002

Heat Strengthened Laminated Glass is one of the Safety Glass used in residential or commercial building.
1.Make-Up
It is made of two sheets of Heat Strength Glass or more with PVB.
2. Property
Heat Strengthened Glass is Semi-tempered Glass, its hardness is weaker than Toughened Glass but stronger than Annealed Glass. It is usually used in the roof of High Building.When Glass is Broken, the broken Glass sheet is big then it can be sticked onto the PVB tightly to decrease the falling possiblity from High place and avoid any damange or hurting on people.
3. Application
Heat strengthened Laminated Glass is generally used in Top area of High building, such as Glass Overhead, Skylight, Glass Roof, Window & curtain wall on High part of building

  • NEO GLASS
HEAT STRENGTHENED LAMINATED GLASS --AS/NZS 2208: 1996, CE, ISO 9002

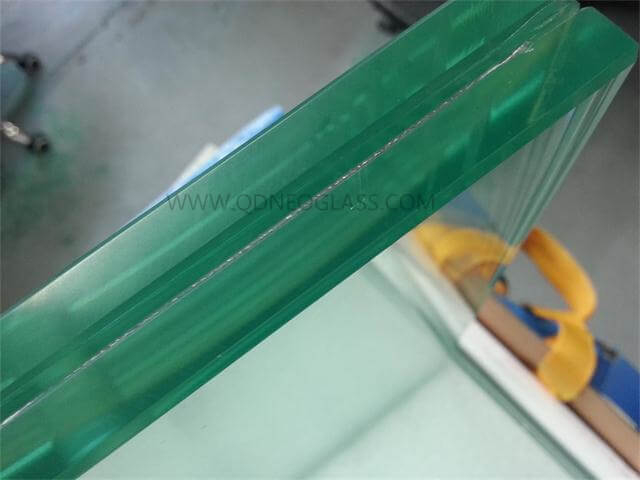

Heat Strengthened Laminated Glass is one of the Safety Glass used in residential or commercial building.It is usally used on High Part of the building. It is made of two sheets of Heat Strengthened Glass or more with PVB. That make-up let it have the property of stealing-resistant and glass anti-splash. That is why it is called safety glass. Besides,our Heat Strengthened Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP.  The two sheets of glass can be one sheet of annealed glass and the other sheet is heat strengthened, or one sheet is tempered glass and the other sheet is heat strengthened.

Due to the color of Float Glass or Glass Interlayer , Heat strengthened Laminated Glass is available with various of colors besides of Clear Heat Strengthened Laminated Glass, such as White Translucent, Grey, Bronze, Blue, Green etc.

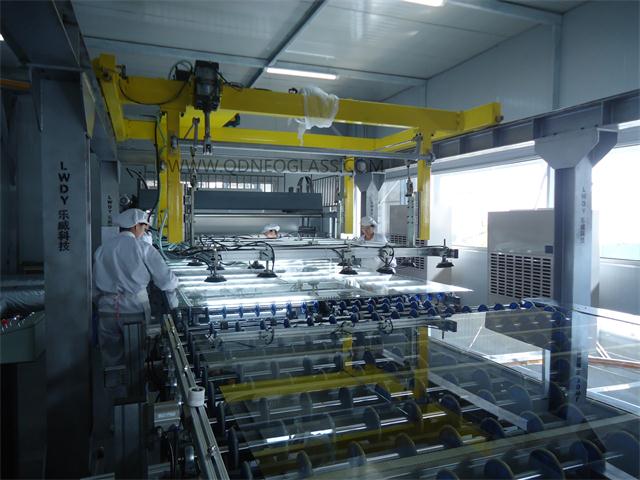

Heat strengthened Laminated Glass is processed mainly in three period. First of all, Pre-Laminating two sheets or more sheets of glass with PVB or SGP; Then Cooking Pre-Laminated Glass on Autoclave with Pressure about 13 PA and High Temperature around 135℃ ; the last step is Packing. As it is Heat Strengthened Laminated Glass, certainly the glass should be semi-toughened firstly before pre-laminating. The semi-Tempered Glass conbining to Laminated Glass can be processed with Polished Edges,Holes, Cut-Outs or in Irregular Shape.

Heat strengthened Laminated glass can be used on higher part of building or on its top as Curtain Wall, Door & Window, Roof, Balcony,Balustrade,Partition, Step,Table, Cabinet, Wardrobe,Sliding Glass, wherever you would like to use.

With certificates of AS/NZS 2208: 1996 and CE, the glass is popular in Australia and New Zealand Market, Europe, USA, Canada and South of America.

 Heat Strengthened Glass,Tempered Glass with Holes and Cutouts, Balustrade Tempered Glass,Tempered Balcony Glass, Tempered Swimming Pool Fencing Glass, Tempered Pool Fencing Glass, Toughened Glass Door Panel, Tempered Storefront Glass, Tempered Shopfront Glass, Tempered Wardrobe Glass, Tempered Sliding Door Glass, Tempered Silkscreen Print Partition Glass, Tempered Shower Door Glass, Tempered Shower Enclosure Glass, Tempered Shower Fixation Glass, Tempered Spandrel Glass, Tempered Furniture Glass, Tempered Window Glass Panel, Tempered Glass House Screen, Tempered Skylight Glass, Tempered Table Glass, Tempered Furniture Glass, Tempered Shower Soap Dish Glass Shelf, Tempered Window Glass Louvre, Tempered Door Glass Louvre, Tempered Screen Glass, Tempered Stair Railing Glass, Tempered Laminated Glass,Tempered Ceramic Frit Laminated Glass,Tempered Silkscreen Print Laminated Glass Wall, Tempered Silkscreen Print Glass Door, Tempered Ceramic Frit Glass Panel, Printing Tempered Glass, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass       Toughened Glass For Shower, Door & WIndwo Glass,Tempered Glass with Holes and Cutouts, Balustrade Tempered Glass,Tempered Balcony Glass, Tempered Swimming Pool Fencing Glass, Tempered Pool Fencing Glass, Toughened Glass Door Panel, Tempered Storefront Glass, Tempered Shopfront Glass, Tempered Wardrobe Glass, Tempered Sliding Door Glass, Tempered Silkscreen Print Partition Glass, Tempered Shower Door Glass, Tempered Shower Enclosure Glass, Tempered Shower Fixation Glass, Tempered Spandrel Glass, Tempered Furniture Glass, Tempered Window Glass Panel, Tempered Glass House Screen, Tempered Skylight Glass, Tempered Table Glass, Tempered Furniture Glass, Tempered Shower Soap Dish Glass Shelf, Tempered Window Glass Louvre, Tempered Door Glass Louvre, Tempered Screen Glass, Tempered Stair Railing Glass, Tempered Laminated Glass,Tempered Ceramic Frit Laminated Glass,Tempered Silkscreen Print Laminated Glass Wall, Tempered Silkscreen Print Glass Door, Tempered Ceramic Frit Glass Panel, Printing Tempered Glass, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass   LAMINATED GLASS PROCESS,Tempered Glass with Holes and Cutouts, Balustrade Tempered Glass,Tempered Balcony Glass, Tempered Swimming Pool Fencing Glass, Tempered Pool Fencing Glass, Toughened Glass Door Panel, Tempered Storefront Glass, Tempered Shopfront Glass, Tempered Wardrobe Glass, Tempered Sliding Door Glass, Tempered Silkscreen Print Partition Glass, Tempered Shower Door Glass, Tempered Shower Enclosure Glass, Tempered Shower Fixation Glass, Tempered Spandrel Glass, Tempered Furniture Glass, Tempered Window Glass Panel, Tempered Glass House Screen, Tempered Skylight Glass, Tempered Table Glass, Tempered Furniture Glass, Tempered Shower Soap Dish Glass Shelf, Tempered Window Glass Louvre, Tempered Door Glass Louvre, Tempered Screen Glass, Tempered Stair Railing Glass, Tempered Laminated Glass,Tempered Ceramic Frit Laminated Glass,Tempered Silkscreen Print Laminated Glass Wall, Tempered Silkscreen Print Glass Door, Tempered Ceramic Frit Glass Panel, Printing Tempered Glass, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass

Size: Max. 2760 x3660 mm
Thickness: Min 7.38mm
Certificates: AS/NZS 2208: 1996, CE, ISO 9002
Raw Glass:   Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass
Glass Process:
           Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
           Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass
Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc
Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
                               or other brand appointed by customers
Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.
Interleave thickness:  PVB-0.38mm, 0.76mm,1.14mm, 1.52mm
                                       SGP-0.89mm, 1.52mm, 2.28mm
Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
                  Carton Package, Pallet Etc.
