Tempered Laminated Low E Glass (SGP Laminated Anti-Hurricane Glass)-AS/NZS 2208: 1996, CE, ISO 9002

Tempered SGP Laminated Glass is hurricane-resistant glass.
1. Application
It is used widely in residential or commercial building for Hurricane-Resistant and Energy Efficiency as Front Glass, Glass Roof, Green House Glass etc.
2.Make-Up
It is made of one sheet of Tempered Float Glass or Hard Coated Low E Glass and the other sheet is Tempered Clear Float Glass with SGP interlayer. Usually the combined glass is Tempered/Toughened with or without Ceramic Frit.That make-up let it have the property of anti-storm, stealing-resistant and glass anti-splash.
Availability:
  • NEO GLASS

 Tempered SGP Laminated Low E Glass-- Hurricane Resistant Glass
AS/NZS 2208: 1996, CE, ISO 9002, DUPONT CERTIFICATE


Brief Introduction

Tempered SGP Laminated Glass is an anti-storm glass. It is used widely in places where is more heavy wind. SGP Laminated Low E Glass (Hard Coated) is one of the Solar Efficiency Safety Glass. It is used widely in residential or commercial building for Hurricane-Resistant and Energy Efficiency as Front Glass, Glass Roof, Green House Glass etc. It is made of one sheet of Tempered Low E Glass (Hard Coated Low E Glass) and the other sheet is Tempered Clear Float Glass with SGP interlayer. Usually the combined glass is Tempered/Toughened with or without Ceramic Frit.That make-up let it have the property of anti-storm, stealing-resistant and glass anti-splash. That is ones of the reasons it is so popular on upscale district.

Custom-Made Color and Size

Due to the color of Float Glass or Glass Interlayer , Laminated Glass is available with various of colors besides of Clear Laminated Glass, such as White Translucent, Grey, Bronze, Blue, Green etc.


Our team is experienced in Cut to Sizes ones.


Simple Introduction of Process
Laminated Glass is processed mainly in three period. First of all, Pre-Laminating two sheets or more sheets of glass with PVB or SGP; Then Cooking Pre-Laminated Glass on Autoclave with Pressure about 13 PA and High Temperature around 135℃ ; the last step is Packing.If it is Tempered Laminated Glass, certainly the glass should be toughened firstly before pre-laminating. The Tempered Glass conbining to Laminated Glass can be processed with Polished Edges,Holes, Cut-Outs or in Irregular Shape.


Application

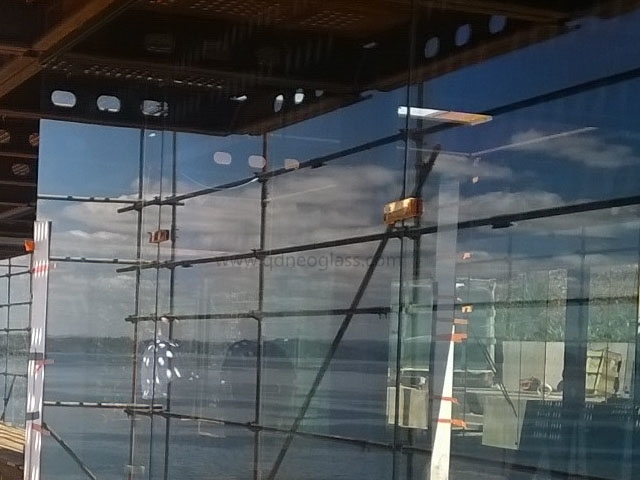

SGP Laminated Glass can be used as Curtain Wall, Door & Window, Roof, Balcony,Balustrade in Typhoon or hurricane-prone areas.

Quality Control System

With certificates of AS/NZS 2208: 1996 and CE, the glass is popular in Australia and New Zealand Market, Europe, USA, Canada and South of America

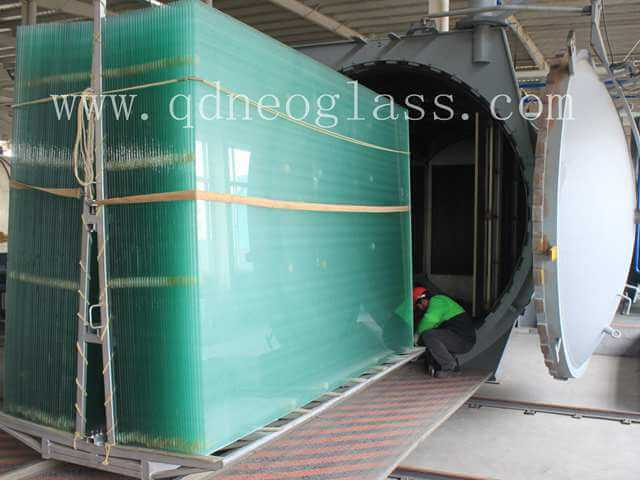

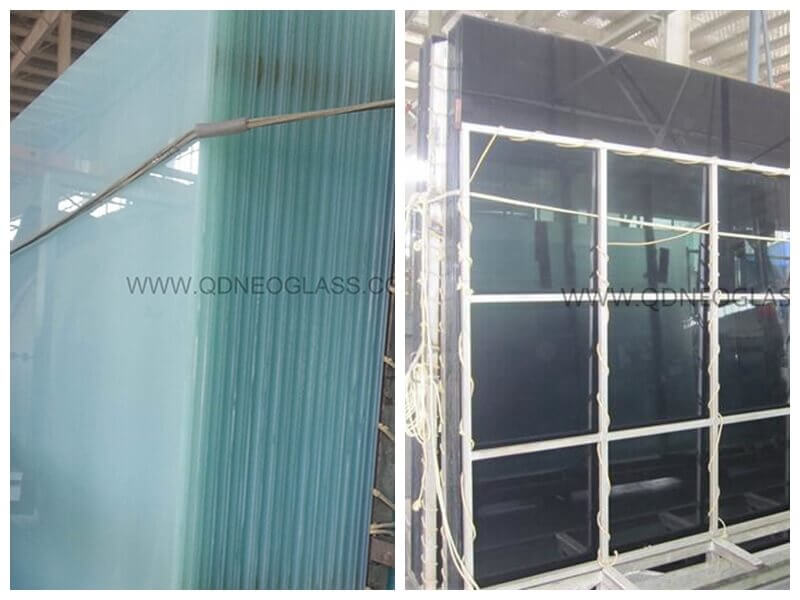

 Clear Laminated Glass Onto Autoclave  Glass Roof, Tempered SGP Laminated Glass, Anti-Storm Laminated SGP Glass, Hurricane-Resistant Laminated SGP Glass, Anti-Typhoon Laminated SGP Glass    Tint Laminated Glass For Glass Wall

On-Time Delivery

Delivey time generally is in 21-28 days. If clients prefer early shipment, that is negotiable.


Strong Exporting Package

Our Package is mostly made of strong plywood. Either Metal package or carton package is available. OEM package is acceptable.

Our package is strong enough to protect glass inside safe.

Laminated Glass Strong Package


Professional Container Loading Fasten

Our Loading team is experienced in the line for over 10 years. They know very well how to fix each cases of glass in the container and fasten them security.

Delivery all our products to our clients in good condition is our task and mission!


SGP Laminated Glass Container Fasten

Size: Max. 18000 mm
Thickness: Min 6.89mm
Certificates: AS/NZS 2208: 1996, CE, ISO 9002
Raw Glass:   Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass
Glass Process:
           Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
           Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass
Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc
Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
                                 or other brand appointed by customers
Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.
Interleave thickness:
                                       SGP-0.89mm, 1.52mm, 2.28mm
Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
                  Carton Package, Pallet Etc.
