Grind Laminated Glass-AS/NZS 2208: 1996, CE, ISO 9002

Grind Laminated Glass is one kind of Laminated Glass with edgework.
1. Make-Up
Two sheets Float Glass with one or more layers of PVB
2. Property

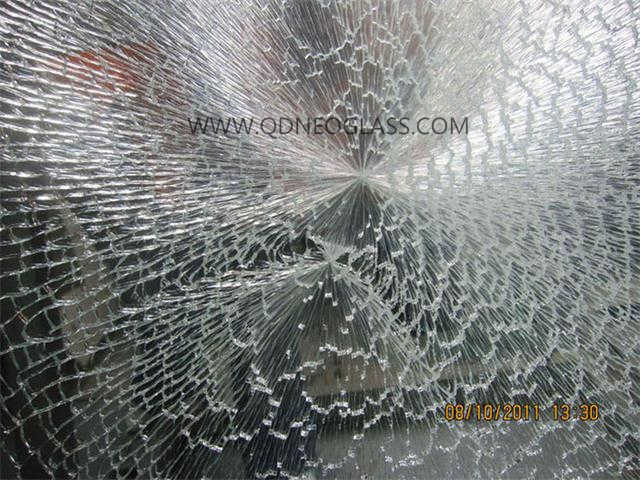

It has properties of stealing-resistant and glass anti-splash.
3. Basic Glass
The sheets of glass can be Annealed, Tempered, Heat Strengthened or clear & Tint Glass.
4. Application
Grind Laminated Glass can be installed with Frame or Frameless. It is used widely in Glass Door & Glass Window, Glass Wall, Balcony Glass, Glass Railing, Stair Railing, Balustrade Glass, Glass Fencing, Fence Glass,House Roof, Partition, Wardrobe etc
Availability:
  • NEO GLASS

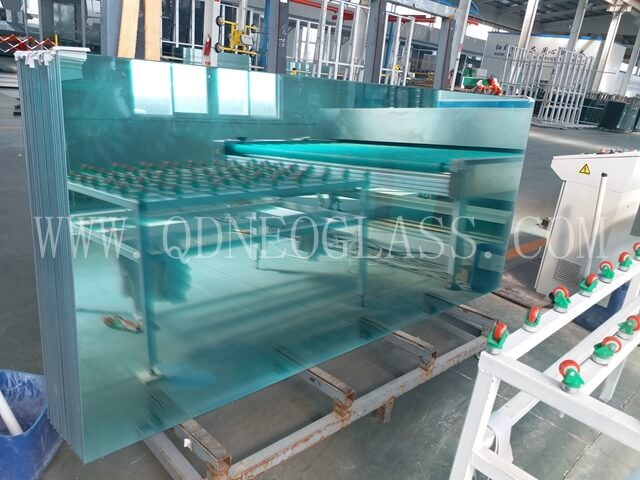

GRIND LAMINATED GLASS --AS/NZS 2208: 1996, CE, ISO 9002

Brief Introduction

Grind Laminated Glass is Laminated Glass with Edgework. That edgework makes it more safety when workers operating. It can be installed with frame or framelss. Grind Laminated Glass has the properties of stealing-resistant and glass anti-splash. Besides,our Grind Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP.  The two sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silvermirror and painted glass. Grind Laminated Glass is widely used on Glass Wall, Balcony Glass, Glass Railing, Stair Railing, Balustrade Glass, Glass Fencing, Fence Glass,Door & Window, House Roof etc. Custom-Made is available.


OEM Colors Available

Besides of Clear Grind Laminated Glass, due to the color of Float Glass or Glass Interlayer , Laminated Glass is available with various of colors besides of Clear Laminated Glass, such as White Translucent, Grey, Bronze, Blue, Green etc.



Custom-Made Processing


Besides Grind Edges, we can also make Hole, Cutout, Safety Corner, Printing & Irregular Shape on Laminated Glass.


We can cut our big Laminated Glass to be small size by manual or by our Laminated Glass Cutting Machine. Delivery is on-time.



Application

Grind Laminated Glass can be used as Curtain Wall, Door & Window, Roof, Balcony,Balustrade,Partition, Step,Table, Cabinet, Wardrobe,wherever you would like to use


Neo Grind Laminated Glass has features as below


I.   Longer Lifetime, Less de-Lamination Rate

II.  High Quality of Raw Glass and PVB & Ionoplast Interlayer (SGP)

III. Flat items with Good Flatness control within 0.2%, even within 0.1% for small cut to size items

IV.Size Tolerance controlled:

            Within 1mm for Cut To Size and Raw Glass size( same color glass);

            Within 1mm for Cut To Size items 2000mm with Grinded Edges;

            Within 1.5mm for Cut To Size Items 3000mm with Grinded Edges;

V. Strict Control on Visible Defects and Chips

VI.Solutions of Breakage Problem in Transportation:

            Unique Professional & Stonge package

                   --Plywood End Cap ,Plywood crate, Plywood A Frame, Metal Package etc;

            Container Loaded technology

VII.Thickness:  4.35-32.28mm;

     Size: Cut to Size, Custom-made, Max 18000mm


Cut to Size Black Laminated Glass, Cut to Size Milky White Laminated Glass,Clear Laminated Glass Cut To Size,Clear Laminated Glass Door, Clear Facades Laminated Glass, Green House Laminated Clear Glass, Clear Tempered Laminated Glass, Black Laminated Glass Cut To size, Cut to Size Polar White Laminated Glass Wall, Laminated Polar white Glass cut to size, Clear Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass,Laminated Handrail Glass, Laminated Glass Facades, Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass, Milky White laminated Glass Door, White Translucent Laminated Glass, 2.7+0.38+2.7 Milky White Laminated Glass, 2.7+0.38+2.7 Laminated Glass, Grey Laminated Glass, Green Laminated Glass, Bronze Laminated Glass, blue Laminated Glass

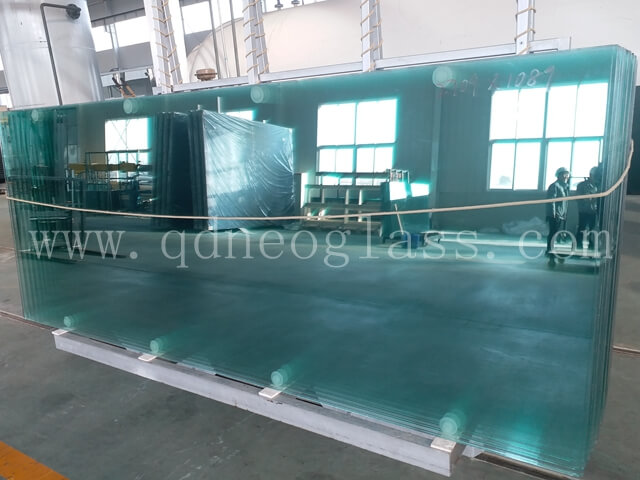

Laminated Glass Cut To Size--Black,Milky White


Blue Heat Strengthened Laminated Glass Cut to Size,Polished Toughened Laminated Glass for Pool Fencing Glass, Balcony Railing Glass, Balustrade Glass, Partition Glass, Wardrobe Glass, Roof Glass, House Glass, Custom-Made Laminated Safety Glass,Laminated Handrail Glass, Laminated Glass Facades,Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass,Laminated Handrail Glass, Laminated Glass Facades, Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Cut To Size Laminated Glass Balustrade, Cut To Size Laminated Glass Balcony, Cut To Size Laminated Pool Glass Fence, Laminated Walk Road Glass, Cut to Size Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Custom-Made Laminated Glass, Milky White laminated Glass Door, White Translucent Laminated Glass Cut To size,Milky White Laminated Glass, Cut to Size Milky White Laminated Glass, Cut To Size Grey Laminated Glass, Green Cut to Size Laminated Glass, Cut To Size Bronze Laminated Glass, blue Laminated Glass

Blue Cut To Size Laminated Glass


Milky White Laminated Glass Door,Clear Laminated Glass Cut To Size, Cut To size Grey Laminated Glass-Grey laminated Glass, White Translucent Laminated Glass, Glass Fence, Fencing Glass, Glass Roof, Glass House, Shopping Mall Front Glass, Blacony Glass, Balustrade Glass, Pool Fencing Glass, Sliding Door Glass, Partition Glass Wall, Door & Window Glass, Reception Glass Table, Curtain Glass Wall,Laminated Handrail Glass, Laminated Glass Facades,Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass,Laminated Handrail Glass, Laminated Glass Facades, Laminated Green House Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Laminated Curtain Wall Glass, Laminated Window Glass, Laminated Door Glass, Laminated Glass Manufacturer, China Laminated Glass Factory, Custom-Made Laminated Glass, Laminated Glass Balustrade, Laminated Glass Balcony, Laminated Pool Glass Fence, Laminated Walk Road Glass, Laminated Fencing Glass, Laminated Glass Roof, Laminated Sliding Door, Laminated Glass Partition, Laminated Glass Wall, Laminated Glass Door, Laminated Glass Table, Laminated Glass Furniture, Laminated Glass Cabinet, China Laminated Glass Manufacturer, Machinery Laminated Glass, Milky White laminated Glass Door, White Translucent Laminated Glass, 2.7+0.38+2.7 Milky White Laminated Glass, 2.7+0.38+2.7 Laminated Glass, Grey Laminated Glass, Green Laminated Glass, Bronze Laminated Glass, blue Laminated Glass

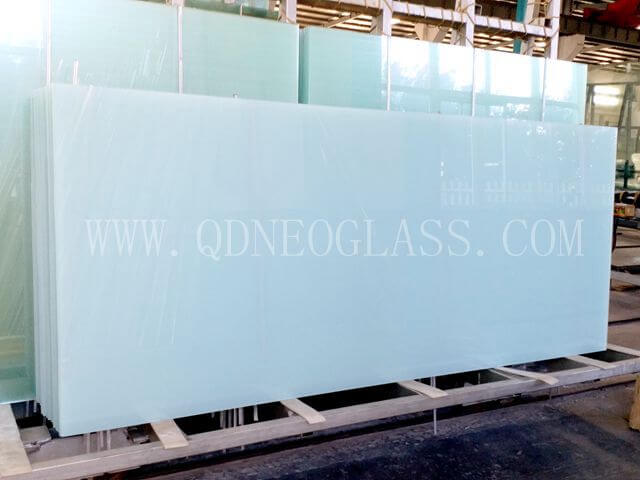

Milky White Laminated Glass Door


Quality Control

Our Quality Control System in House is pretty Strict to prevent any problems or defects before our Grind Laminated Glass is delivered

With certificates of AS/NZS 2208: 1996 and CE, the glass is popular in Australia and New Zealand Market, Europe, USA, Canada and South of America.


On-Time Delivery


Delivery time for big size is in 10-18 days and for custom-made items in 18-28 days. If clients have special requirement on that, we would try our best to make some adjustment to satisfy with them.

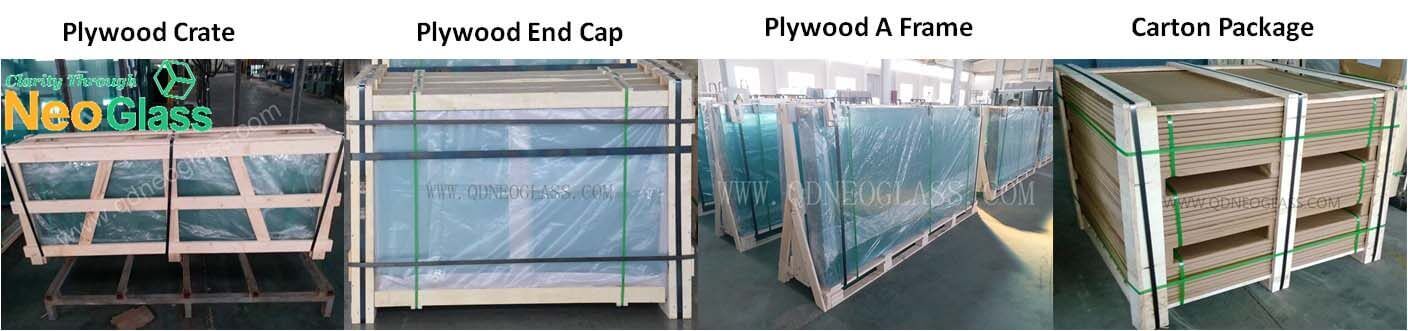

Strong Exporting Package

Our package in material of either Plywood or metal, is pretty strong to bear long time ocean & inland transportation.

Strong Package of Laminated Glass Cut To Size










Professional Container Loading Fasten

Let customers receive all glass safe is one of our responsibilities. Our Loading team has decades of experience to fasten the container safety and strong.

Laminated Glass Container Fasten



Size: Max. 18000 mm, custom-made sizes are available
Thickness: Min 4.38mm
Certificates: AS/NZS 2208: 1996, CE, ISO 9002
Raw Glass:   Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass
Glass Process:
           Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
           Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass
Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc
Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
                           or other brand appointed by customers
Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.
Interleave thickness:  PVB-0.38mm, 0.76mm,1.14mm, 1.52mm
                                 SGP-0.89mm, 1.52mm, 2.28mm
Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
              Carton Package, Pallet Etc.


We have a Laminated Glass Cutting Machine to cut our big Laminated Glass to be small size. That machine is more efficiency in the cutting than it does by hand-man. Then delivery time is faster.
