Custom-Made Laminated Safety Glass-AS/NZS 2208: 1996, CE, ISO 9002

Cut to Size/Custom-Made Laminated PVB Glass is provided by Qingdao Neo Glass
1. Size
We can do Laminated Glass at sizes customers need. We cut big Laminated Glass to be small sizes by either laminated glass cutting machine or by hand.Our efficiency is higher than competitors. We can also do it in shapes.
2. Property
That make-up let it have the property of stealing-resistant and glass anti-splash.
3. Basic Glass
The sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silver mirror and painted glass.
4. Application
Custom-Made Laminated Safety Glass is widely used on Door & Window Glass, Glass Wall, Balcony Glass, Glass Railing, Stair Railing, Balustrade Glass, Glass Fencing, Fence Glass, House Roof, Partition, Sliding Door For Wardrobe etc
Availability:
  • NEO GLASS

CUSTOM-MADE LAMINATED SAFETY GLASS --AS/NZS 2208: 1996, CE, ISO 9002

Brief Introduction

Custom-made Laminated Glass is one of the Safety Glass used in residential or commercial building. It is made of two sheets of glass or more with PVB. That make-up let it have the property of stealing-resistant and glass anti-splash. That is why it is called safety glass.Besides,our Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP.  The two sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silvermirror and painted glass. Laminated Safety Glass is widely used on Glass Wall, Balcony Glass, Glass Railing, Stair Railing, Balustrade Glass, Glass Fencing, Fence Glass,Door & Window, House Roof etc. Custom-Made is available.



Due to the color of Float Glass or Glass Interlayer , Laminated Glass is available with various of colors besides of Opal White Laminated Safety Glass, such as Clear, Grey, Bronze, Blue, Green etc.



Process

Laminated Safety Glass is processed mainly in three period. First of all, Pre-Laminating two sheets or more sheets of glass with Whte Translucent PVB or SGP; Then Cooking Pre-Laminated Glass on Autoclave with Pressure about 13 PA and High Temperature around 135℃ ; the last step is Packing.If it is Tempered Laminated Glass, certainly the glass should be toughened firstly before pre-laminating. The Tempered Glass conbining to Laminated Glass can be processed with Polished Edges,Holes, Cut-Outs or in Irregular Shape.

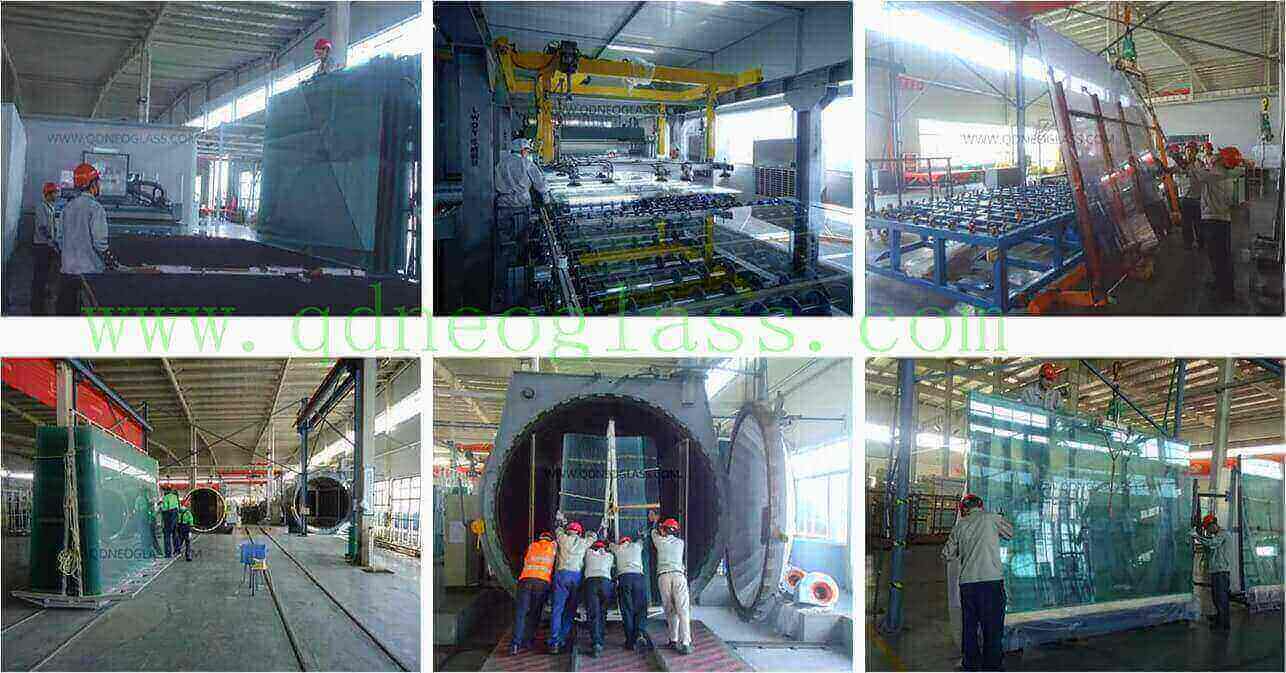

  Laminated Glass Process


Application

Custom-Made Laminated Safety glass can be used as Curtain Wall, Door & Window, Roof, Balcony,Balustrade,Partition, Step,Table, Cabinet, Wardrobe,wherever you would like to use


OEM Avaialable

We can cut our big Laminated Glass to be small sizes by manual or by our laminated cutting machine. That machine is more efficiency in the cutting than it does by hand-man. Then delivery time is faster.

Quality Control


Our custom-made Laminated Safety Glass is made strictly in accordance with AS/NZS 2208: 1996, ISO and CE

With Top quality and affordable prices, our custom-made Laminated Safety Glass is popular in Australia and New Zealand Market, Europe, USA, Canada and South of America

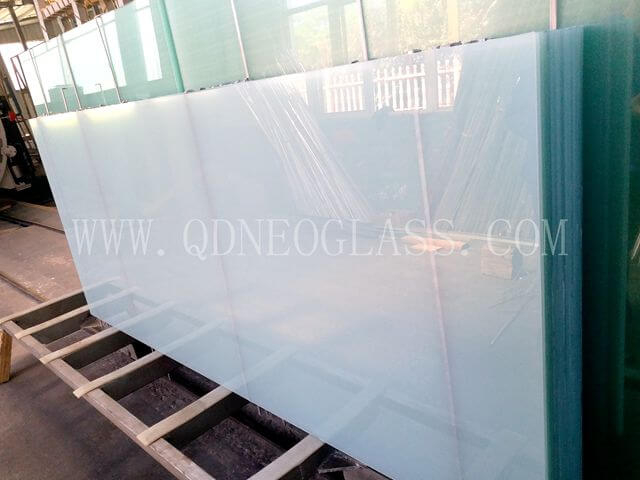

White TRANSLUCENT LAMINATED GLASS,Milky White Laminated Safety Glass, Opal White Laminated Safety Glass     Opal Laminated Safety Glass, Milky White Laminated Safety Glass,White Translucent Laminated Glass Milky White Laminated Glass, Opal White Laminated Safety Glass,White Translucent Laminated Glass

Feature

I.   Longer Lifetime, Less de-Lamination Rate

II.  High Quality of Raw Glass and PVB & Ionoplast Interlayer (SGP)

III. Flat items with Good Flatness control within 0.2%, even within 0.1% for small cut to size items

IV.Size Tolerance controlled:

            Within 1mm for Cut To Size and Raw Glass size( same color glass);

            Within 1mm for Cut To Size items 2000mm with Grinded Edges;

            Within 1.5mm for Cut To Size Items 3000mm with Grinded Edges;

V. Strict Control on Visible Defects and Chips

VI.Solutions of Breakage Problem in Transportation:

            Unique Professional & Stonge package

                   --Plywood End Cap ,Plywood crate, Plywood A Frame, Metal Package etc;

            Container Loaded technology

VII.Thickness:  4.35-32.28mm;

     Size: Cut to Size, Custom-made, Max 18000mm

On-Time Delivery


Delivery time for big size is in 10-18 days and for custom-made items in 18-28 days. If clients have special requirement on that, we would try our best to make some adjustment to satisfy with them.

Strong Safety Package for Long Ocean Shipment

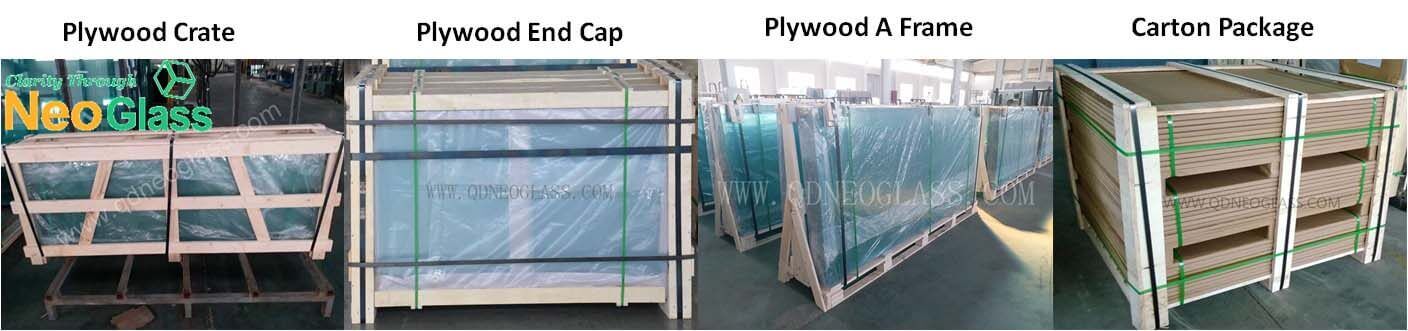

Laminated Glass Strong Package

Our package are made of strong & fumigation free material, such as plywood, carton & metal. OEM, ODM and OBM package are available. The package are produced to bear long time ocean freight and make sure all custom-made Laminated Safety Glass are protected well.


Professional Container Loading Fasten

We have experienced Loading team. They excel in loading issues of different glass products. No Damagement on any glass when customers receive the container is they slogan.


Laminated Glass Container Fasten


Size: Max. 18000 mm, Custom-made Sizes are available
Thickness: Min 4.38mm
Certificates: AS/NZS 2208: 1996, CE, ISO 9002
Raw Glass:   Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass
Glass Process:
           Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
           Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass
Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc
Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
                           or other brand appointed by customers
Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.
Interleave thickness:  PVB-0.38mm, 0.76mm,1.14mm, 1.52mm
                                 SGP-0.89mm, 1.52mm, 2.28mm
Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
              Carton Package, Pallet Etc.


We have a Laminated Glass Cutting Machine to cut our big Laminated Glass to be small size. That machine is more efficiency in the cutting than it does by hand-man. Then delivery time is faster.
