Triple Laminated Glass

Triple Laminated Glass is made of Three sheets of Glass panel with PVB.
1. Property
Its make-up let it have the property of stealing-resistant, bullet poof, and glass anti-splash.
2.Basic Glass
Glass Sheet can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silver mirror and painted glass.
3. Application
It is one of the Safety Glass widely used in the places where require high security such as in the bank.
Availability:
  • NEO GLASS

TRIPLE LAMINATED GLASS --AS/NZS 2208: 1996, CE, ISO 9002

Triple Laminated Glass is one of the Safety Glass used in the places where require high security, such as the bank. It is made of three sheets of Glass with PVB. That make-up let it have the property of stealing-resistant, bullet-proof and glass anti-splash. Our Triple Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP.  The Three sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silver mirror and painted glass.

Due to the color of Float Glass or Glass Interlayer , Laminated Glass is available with various of colors besides of Clear Laminated Glass, such as White Translucent, Grey, Bronze, Blue, Green etc.

Triple Laminated Glass is processed mainly in three period. First of all, Pre-Laminating two sheets or more sheets of glass with PVB or SGP; Then Cooking Pre-Laminated Glass on Autoclave with Pressure about 13 PA and High Temperature around 135℃ ; the last step is Packing.If it is Tempered Laminated Glass, certainly the glass should be toughened firstly before pre-laminating. The Tempered Glass conbining to Laminated Glass can be processed with Polished Edges,Holes, Cut-Outs or in Irregular Shape.


With certificates of AS/NZS 2208: 1996 and CE, the glass is popular in Australia and New Zealand Market, Europe, USA, Canada and South of America

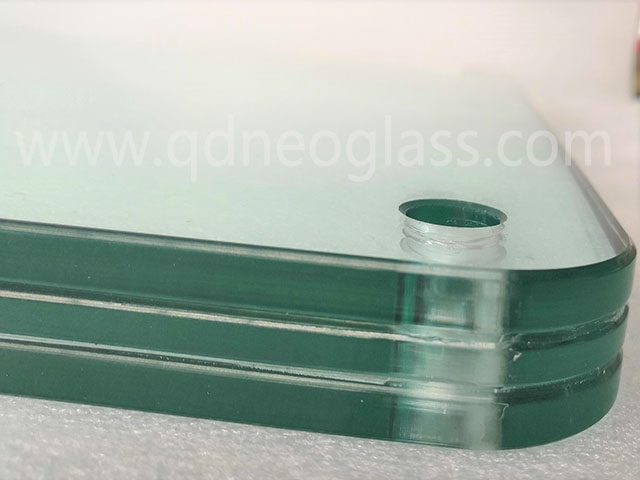

Heat Strengthened Laminated Glass       Tempered Triple Laminated Glass   Clear Tempered Laminated Glass

Certificates: AS/NZS 2208: 1996, CE, ISO 9002
Raw Glass:   Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass
Glass Process:
           Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
           Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass
Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc
Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
                              or other brand appointed by customers
Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.
Interleave thickness:  PVB-0.38mm, 0.76mm,1.14mm, 1.52mm
                                      SGP-0.89mm, 1.52mm, 2.28mm
Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
                 Carton Package, Pallet Etc.

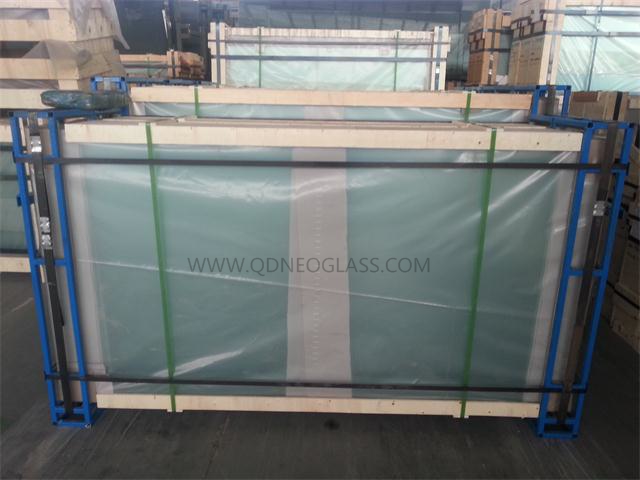

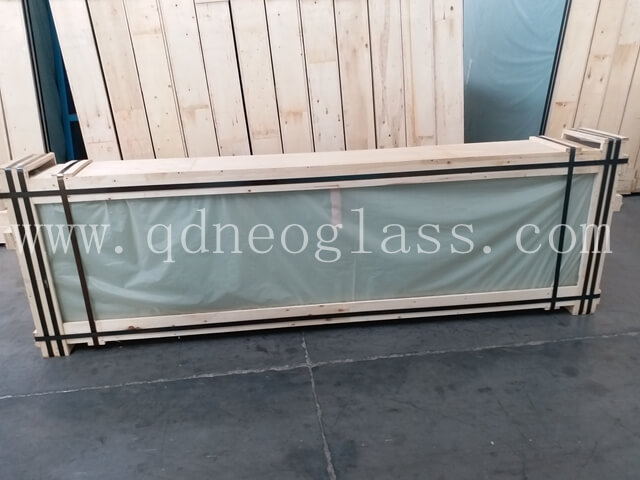

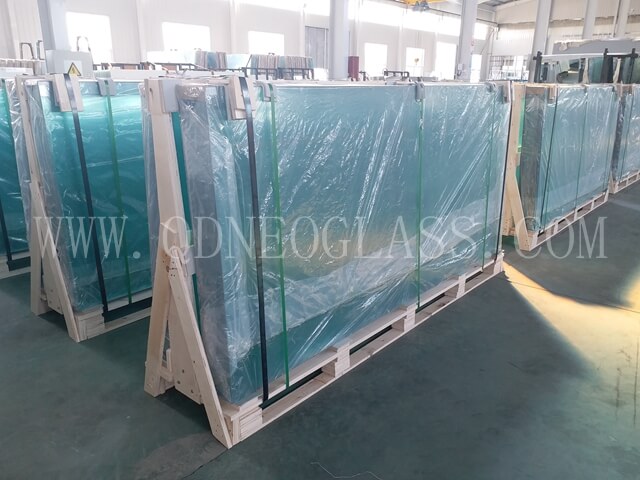

A Wood Frame Crate 4      Laminated Glass Plywood End Cap  Tempered Glass-Metal End Cap
