Tempered Door Panel Glass with Holes/Cutouts-AS/NZS 2208: 1996, CE, ISO 9002

Tempered Glass is also called Toughened Glass in some places.
1. Safety Property
Its Intensity is about 5 times as the common Float Glass. Glass Sheet would become thousands of small glass pieces without sharp tips once it is broken.
2. Process on Glass
Glass can be Polished, Holes, Or Cutouts.
3. Basic Glass
Its basic glass can be annealed and ceramic frit. They can also be float glass, patterned glass,low e, low Iron glass, Acid Etched Glass. Glass color can be Tint, such as Grey, Blue, Bronze,Green etc.
4. Application
Tempered Glass can be Laminated to be Laminated Tempered Glass, that is used widely on Glass Roof, Glass Overhead, Balcony Glass on high building and so on.
Availability:
  • NEO GLASS

TEMPERED GLASS WITH HOLES & CUTOUT --AS/NZS 2208: 1996, CE, ISO 9002

Brief Introduction

Tempered Glass is also called Toughened Glass in some places. Its Intensity is about 5 times as the common Float Glass. Gllass Sheet would become thousands of small glass pieces without sharp tips once it is broken. That can less the possibility  to hurt people. So tempered glass is also one of the Safety Glass. Tempered Glass can not be cut, hole and polished after termpering process, but it can be laminated or do IGU Glass after that.

Color Available

The colors of Tempered Glass available are up to the color available of its basic Float Glass or Low E Glass. Generally the colors for Float Glass are Clear, Low Iron, Euro Grey, Crystal Grey, Jinjing Grey, Bronze etc. Low E glass has on-line coated Low e glass and off-line Coated Low E Glass. On-Line Low e usually only has Clear color and the production schedule for tint color is not regular due to market demand and MOQ for running the line. Off-line Low E Glass can be various colors according to customers' requirement, but after it is tempered, it must do IGU glass asap or its coat will be damaged in the air.

Custom-Made Size and Shape

As mentioned above, after tempering process, that glass can not be cut, hole, cutout and polished, then Tempered Glass is also one kind of Custom-Made safety glass in Size, Color and Shape.



Holes and Cutouts on Tempered Glass can also be customized.  Polished Holes and Cutout are available.

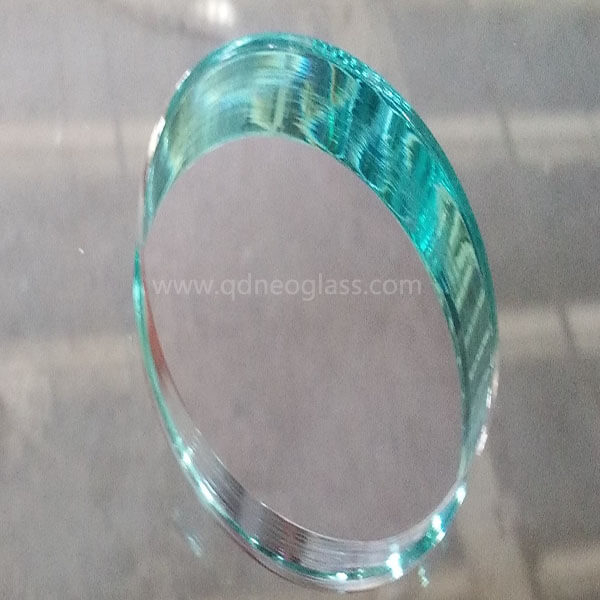

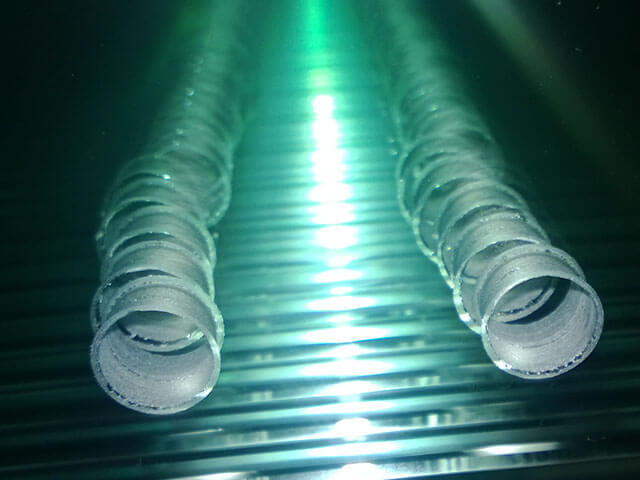

            Tempered Glass Polished Hole       Tempered Glass with Holes                                                       Polished Hole                                                            Ordinary Hole


Tempered Glass with Polished Edges sells very well in the market.

Polished Tempered Glass With Round Corners 3        Polished Tempered Glass With Round Corners 6    Low Iron Tempered Glass



Process

It spends about 45 mins for the furnace to warm up and re-start to toughen glass.We have strict quality control on the glass flatness and the glass curve /bent is within limits. Besides,our glass can also do heat soaked test if required to less the possibility of its self-bombing. The processes of Silk Screen Print and Ceramic frit are also available.

Two or more sheets of Tempered Glass can be laminated to be Laminated Glass or be combined to be IGU. If the glass is used to produce Laminated Glass, its flatness must be within control to avoid bubbles between two or more sheets of glass laminated.

Tempered Glass can be processed with Hole, Cutouts, Polished Edges or in Irregular Shape. Besides, it can also be Heat Soaked to less the possibility or risk of Self-Bomb/Spontaneous breakage.


Feature


I. Long Lifetime, Low Spontaneous Breakage Rate

II. High Quality Raw Glass made by China Top Level Manufacturers

III. Flat Tempered Glass with flatness within 0.2%, even within 0.1% for some items

IV. Size Tolerance:  within 1mm for sizes 2000mm;

                               within 1.5mm for sizes 3000mm

V. Thickness Tolerance: Within 0.2mm

VI. Strict Control on Visible Defects and Chips

VII. Solutions of Breakage problem in Transportation

             Unique Stonge Package

             --Plywood End Cap, Plywood Crate,Plywood A Frame, Metal Package, Individual Carton Package;

             Professional Container Loaded Technology

VI. Thickness: 3mm to 25mm

     Size: Custom-made, Max 18000mm


Application

The application of Tempered Glass is widely in daily life. Door & Window Glass, Pool Fence Glass,Balustrade Glass, Balcony Glass,Bathroom Glass, Shower Door Glass Panel, Floor Glass, Sliding Door glass,Furniture Glass,Table Glass, Spandrel Glass, Louvrer Glass etc, huge places can use glass. If tempered glass is polished all edges, it can be installed frameless.

Tempered Glass sells very well in Australia, New Zealand, Europe, USA, Canada and South of America with Quality Control System AS/NZS 2208:1996,CE,ISO.

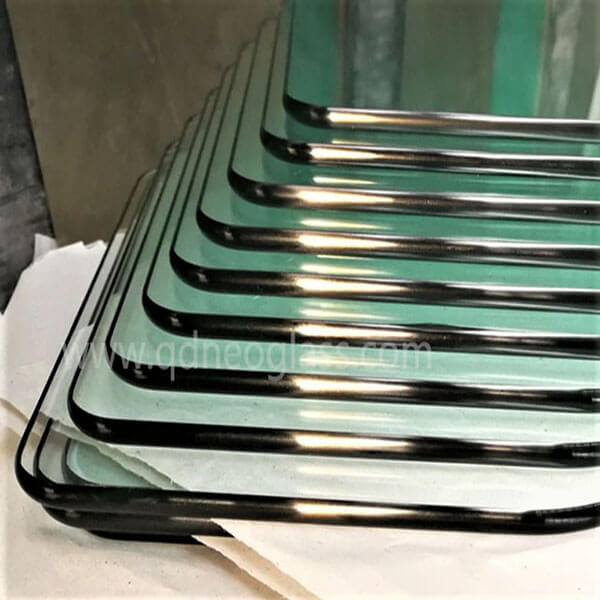

Custom Tempered Glass Shelf            Tempered Glass Shelf         Tempered Curved Low Iron Glass
