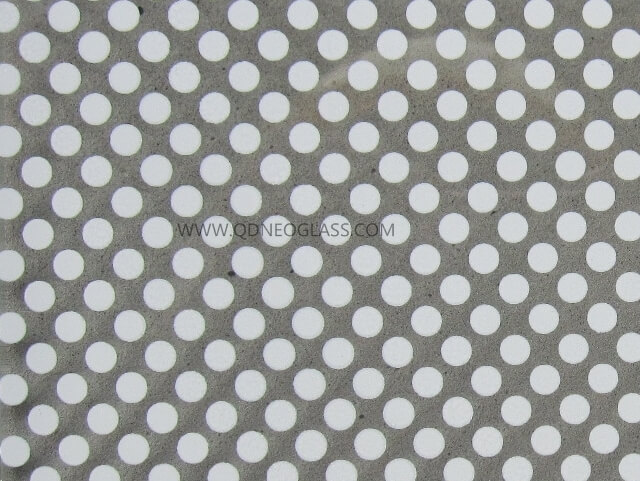

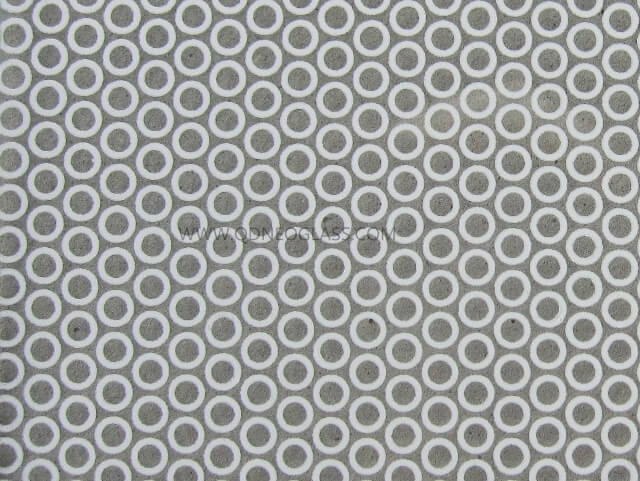

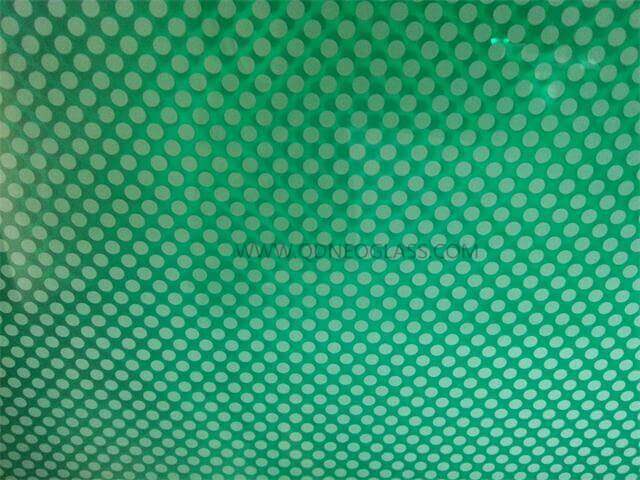

TOUGHENED LAMINATED GLASS WITH SILK SCREEN (CERAMIC FRIT) --AS/NZS 2208: 1996, CE, ISO 9002

Toughened Laminated Glass with Silk Screen/Ceramic Frit is one of the Safety Glass used in residential or commercial building. It is made of two sheets of Toughened Glass or more with frit combined by PVB. That make-up let it have the property of stealing-resistant and glass anti-splash. That is why it is called safety glass. Besides,our Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP.  The two sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silver mirror and painted glass.

Toughened Laminated glass can be used as Curtain Wall, Door & Window, Roof, Balcony, Balustrade,Partition, Step,Table, Cabinet, Wardrobe,wherever you would like to use.

With certificates of AS/NZS 2208: 1996 and CE, the glass is popular in Australia and New Zealand Market, Europe, USA, Canada and South of America



Size: Max. 2760 x3660 mm
Thickness: Min 4.38mm
Certificates: AS/NZS 2208: 1996, CE, ISO 9002
Raw Glass:   Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass
Glass Process:
           Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
           Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass
Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc
Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
                               or other brand appointed by customers
Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.
Interleave thickness:  PVB-0.38mm, 0.76mm,1.14mm, 1.52mm
                                       SGP-0.89mm, 1.52mm, 2.28mm
Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
                  Carton Package, Pallet Etc.
