Heat Strengthened Glass

Heat-strengthened glass made by Qingdao Neo Glass is also called Semi-Tempered Glass.
1.Mechanical Property
Its mechanical strength is 1.6-2 times of ordinary annealed glass though half of full tempered glass.And the thermal stress is about 3 times of annealed glass.Its flatness and light transmission are much better than full Toughened Glass.
2. Application
The glass can also be used in high wind load areas, but cannot be used in any safety glazing applications. It is widely used in laminated glass for additional strength, such as in overhead and Slopped Glazing.

  • Neo Glass
                      Heat Strengthend Glass (Semi-Tempered Glass)

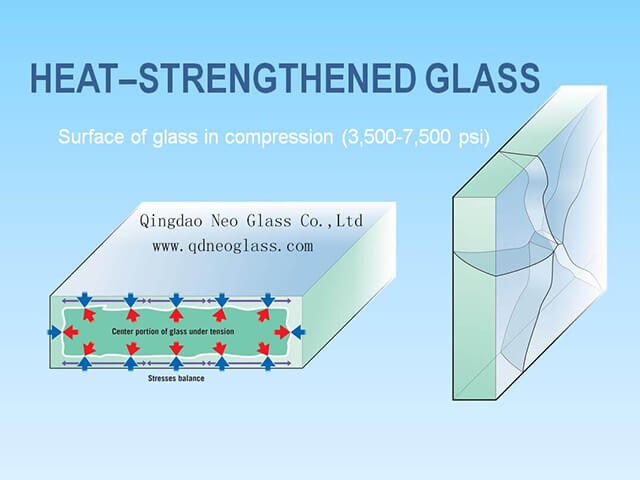

Heat-strengthened glass made by Qingdao Neo Glass is also called Semi-Tempered Glass. Its process is similar to fully tempered glass but the cooling rate is slower than toughened glass. However the heating temperature process keeps the same for both heat strengthened glass and fully tempered glass. Its mechanical strength is 1.6-2 times of ordinary annealed glass though half of full tempered glass.And the thermal stress is about 3 times of annealed glass.Its flatness and light transmission are much better than full Toughened Glass.

Heat Strengthened Glass continues to gain popularity and is often the choice of the design professionals for vertical vision spandrel areas and for laminated sloped glazing. It is valued for its mechanical strength which is twice of normal annealed though half of full tempered glass and much flatter,less distortions.



Comparison of Heat Strengthened Glass and Tempered Glass,Heat Strengthened Glass, Heat Strengthened Laminated Glass, Semi-Tempered Glass, Semi-Tempered Laminated Glass,Tempered Glass with Holes and Cutouts, Balustrade Tempered Glass, Tempered Balcony Glass, Tempered Swimming Pool Fencing Glass, Tempered Pool Fencing Glass, Toughened Glass Door Panel, Tempered Storefront Glass, Tempered Shop front Glass, Tempered storefront Glass, Tempered Wardrobe Glass, Tempered Sliding Door Glass, Tempered Silkscreen Print Partition Glass, Tempered Shower Door Glass, Tempered Shower Enclosure Glass, Tempered Shower Fixation Glass, Tempered Spandrel Glass, Tempered Heat Soaked Glass, Tempered Heat Treated Glass, Tempered Furniture Glass, Tempered Window Glass Panel, Tempered Glass House Screen, Tempered Skylight Glass, Tempered Table Glass, Tempered Furniture Glass, Tempered Shower Soap Dish Glass Shelf, Tempered Window Glass Louvre, Tempered Door Glass Louvre, Tempered Screen Glass, Tempered Stair Railing Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Tempered Silkscreen Print Glass Door, Tempered Ceramic Frit Glass Panel, Printing Tempered Glass, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Custom-Made Tempered Glass, Round Tempered Glass, Tempered Corridor Glass


Heat-strengthened glass is typically specified when additional strength is needed to resist wind pressure/load, thermal stress or both caused by certain Tinted or Coated Glass, and the additional strength or safety break pattern of fully tempered glass is not required. Another advantage of heat-strengthened glass is that when broken, the glass fragments are more similar in size and shape to annealed glass fragments and thus tend to stay in the opening longer than fully tempered glass particles. Although heat-strengthened glass is NOT a safety glazing by building code, this breakage pattern prevents the glass from falling and injuring someone.Then It is widely used in laminated glass for additional strength, such as in overhead and Slopped Glazing.

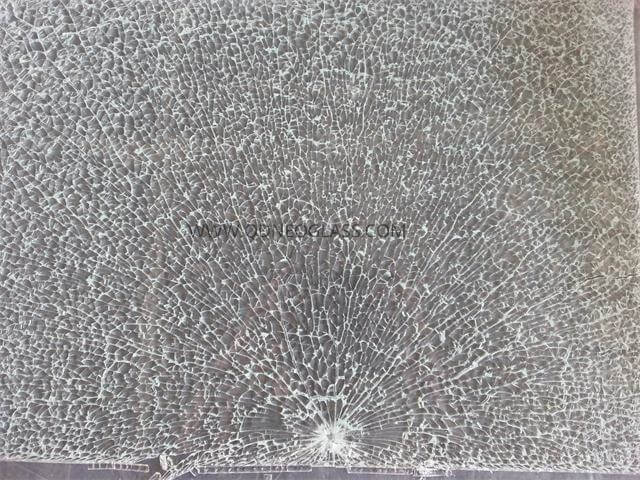

                  Breakage Pattern Of Heat Strengthened Glass,Heat Strengthened Laminated Glass, Semi-Tempered Laminated Glass,Tempered Glass with Holes and Cutouts, Balustrade Tempered Glass, Tempered Balcony Glass, Tempered Swimming Pool Fencing Glass, Tempered Pool Fencing Glass, Toughened Glass Door Panel, Tempered Storefront Glass, Tempered Shop front Glass, Tempered storefront Glass, Tempered Wardrobe Glass, Tempered Sliding Door Glass, Tempered Silkscreen Print Partition Glass, Tempered Shower Door Glass, Tempered Shower Enclosure Glass, Tempered Shower Fixation Glass, Tempered Spandrel Glass, Tempered Heat Soaked Glass, Tempered Heat Treated Glass, Tempered Furniture Glass, Tempered Window Glass Panel, Tempered Glass House Screen, Tempered Skylight Glass, Tempered Table Glass, Tempered Furniture Glass, Tempered Shower Soap Dish Glass Shelf, Tempered Window Glass Louvre, Tempered Door Glass Louvre, Tempered Screen Glass, Tempered Stair Railing Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Tempered Silkscreen Print Glass Door, Tempered Ceramic Frit Glass Panel, Printing Tempered Glass, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Custom-Made Tempered Glass, Round Tempered Glass, Tempered Corridor Glass             Tempered Glass,Tempered Glass with Holes and Cutouts, Balustrade Tempered Glass, Tempered Balcony Glass, Tempered Swimming Pool Fencing Glass, Tempered Pool Fencing Glass, Toughened Glass Door Panel, Tempered Storefront Glass, Tempered Shop front Glass, Tempered storefront Glass, Tempered Wardrobe Glass, Tempered Sliding Door Glass, Tempered Silkscreen Print Partition Glass, Tempered Shower Door Glass, Tempered Shower Enclosure Glass, Tempered Shower Fixation Glass, Tempered Spandrel Glass, Tempered Heat Soaked Glass, Tempered Heat Treated Glass, Tempered Furniture Glass, Tempered Window Glass Panel, Tempered Glass House Screen, Tempered Skylight Glass, Tempered Table Glass, Tempered Furniture Glass, Tempered Shower Soap Dish Glass Shelf, Tempered Window Glass Louvre, Tempered Door Glass Louvre, Tempered Screen Glass, Tempered Stair Railing Glass, Tempered Laminated Glass, Tempered Ceramic Frit Laminated Glass, Tempered Silkscreen Print Laminated Glass Wall, Tempered Silkscreen Print Glass Door, Tempered Ceramic Frit Glass Panel, Printing Tempered Glass, Laminated Tempered Glass Roof, Laminated Tempered Glass Overhead, Heat Strengthened Laminated Glass Overhead, Heat strengthened Laminated Glass Roof, Heat Strengthened Laminated Glass Skylight, Semi-Tempered Laminated Glass, Semi-Toughened Laminated Glass, Custom-Made Tempered Glass, Round Tempered Glass, Tempered Corridor Glass

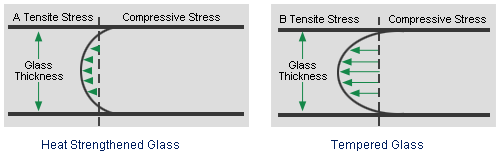

            Heat Strengthened Glass                                             Tempered Glass
