Opal White Laminated Safety Glass is one of the Safety Glass used in residential or commercial building. Its other names are Frosted Laminated Glass, Milky White Laminated Glass.
1. PVB Make-Up
It is made of two sheets of Clear Float Glass or more with White Translucent /Opal/Milky White PVB.
2. Property
That make-up let it have the property of stealing-resistant and glass anti-splash.
3. Basic Glass

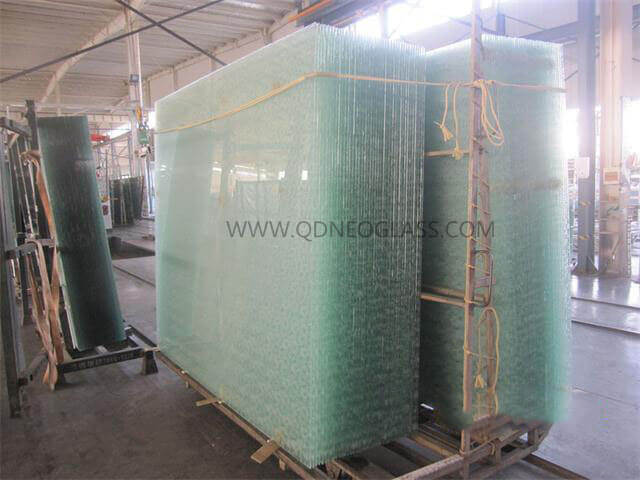

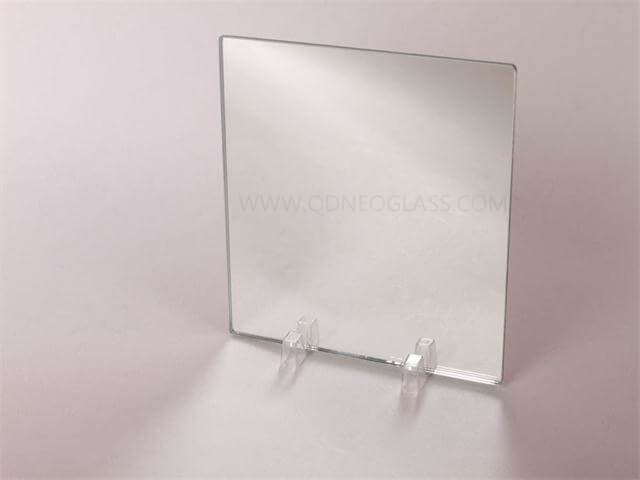

The sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silver mirror and painted glass.
4. Application
Laminated Safety Glass is widely used on Glass Wall, Balcony Glass, Glass Railing, Stair Railing, Balustrade Glass, Glass Fencing, Fence Glass,Door & Window, House Roof, Partition, Sliding Door For Wardrobe etc
OPAL WHITE LAMINATED SAFETY GLASS --AS/NZS 2208: 1996, CE, ISO 9002
(Milky White Laminated Glass, Frosted Laminated Glass, White Translucent Laminated Glass)
Brief Introduction
Opal White Laminated Glass is one of the Safety Glass used in residential or commercial building. It is made of two sheets of glass or more with White Translucent PVB. That make-up let it have the property of stealing-resistant and glass anti-splash. That is why it is called safety glass.Besides,our Laminated glass can be energy efficiency, acoustic, or even hurricane-resistant with Dupont SGP. The two sheets of glass can be annealed, tempered, heat strengthened and ceramic frit. They can also be float glass, patterned glass,low e, silvermirror and painted glass. Laminated Safety Glass is widely used on Glass Wall, Balcony Glass, Glass Railing, Stair Railing, Balustrade Glass, Glass Fencing, Fence Glass,Door & Window, House Roof etc. Custom-Made is available.
OEM at different color, cut to size and shapes

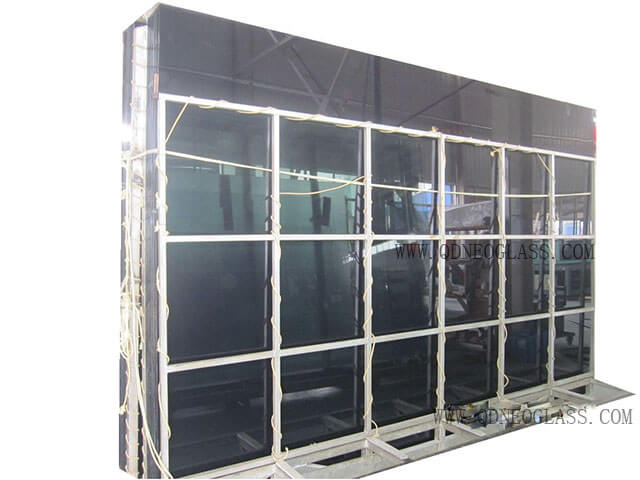

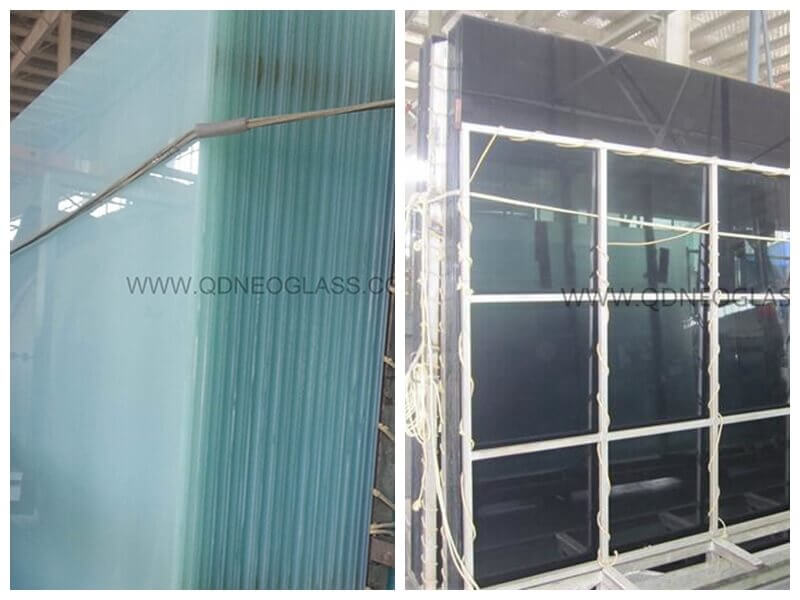

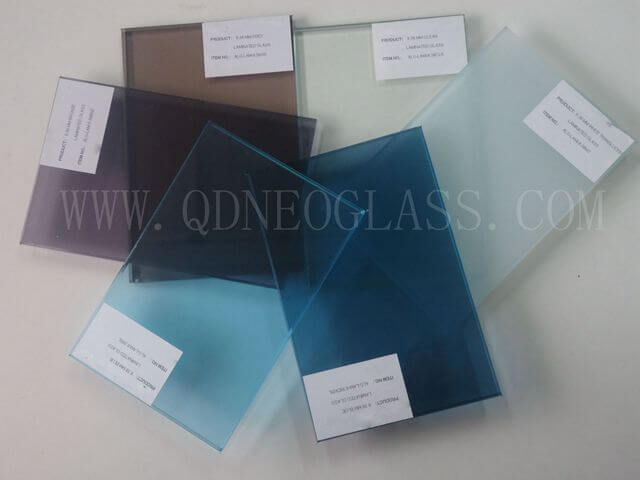

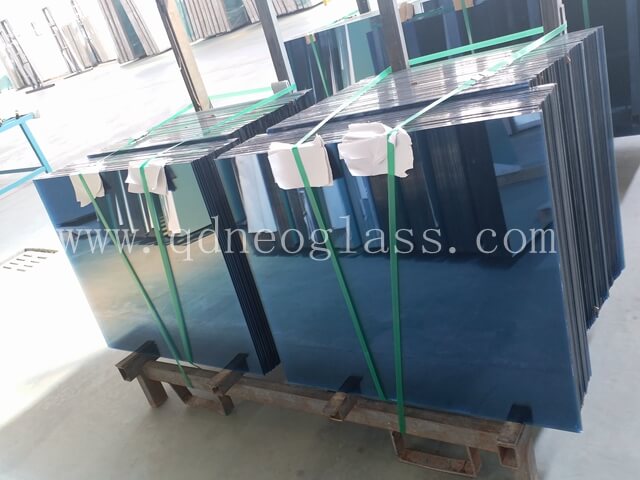

Due to the color of Float Glass or Glass Interlayer , Laminated Glass is available with various of colors besides of Opal White Laminated Safety Glass, such as Clear, Grey, Bronze, Blue, Green etc.

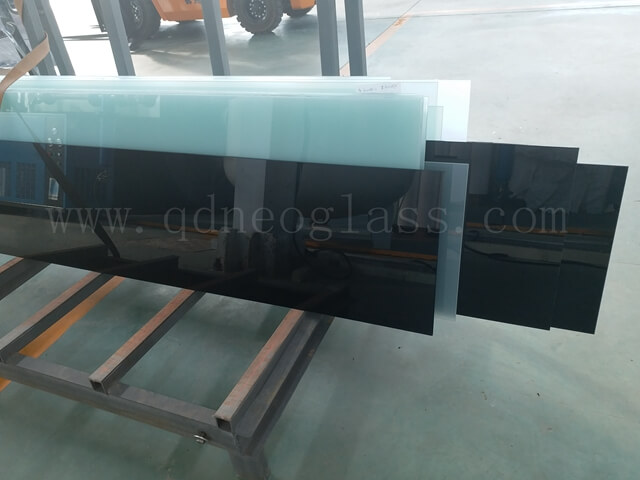

We have a Laminated Glass Cutting Machine to cut our big Laminated Glass to be small size. That machine is more efficiency in the cutting than it does by hand-man. Then delivery time is faster.
Process
Opal White Laminated Safety Glass is processed mainly in three period. First of all, Pre-Laminating two sheets or more sheets of glass with Whte Translucent PVB or SGP; Then Cooking Pre-Laminated Glass on Autoclave with Pressure about 13 PA and High Temperature around 135℃ ; the last step is Packing.If it is Tempered Laminated Glass, certainly the glass should be toughened firstly before pre-laminating. The Tempered Glass conbining to Laminated Glass can be processed with Polished Edges,Holes, Cut-Outs or in Irregular Shape.
Application
Opal White Laminated Safety glass can be used as Curtain Wall, Door & Window, Roof, Balcony,Balustrade,Partition, Step,Table, Cabinet, Wardrobe,wherever you would like to use
Quality Control & Certificate
There are many quality points on Laminated Glass, such as de-lamination, glass bow, bubble, impurity, chip, scratch,dislocation etc. De-lamination is a serious problem on Laminated Glass. We use High Quality Float Glass and PVB made by manufacturers in 1st top level and follow Strict Quality Control System to Low the de-lamination rate, make its lifetime longer, control its bending and less any possibility of default. We do our best to ensure the products we deliver will not make trouble to both our customers and us.
With certificates of AS/NZS 2208: 1996 and CE, the glass is popular in Australia and New Zealand Market, Europe, USA, Canada and South of America
Feature
I. Longer Lifetime, Less de-Lamination Rate
II. High Quality of Raw Glass and PVB & Ionoplast Interlayer (SGP)
III. Flat items with Good Flatness control within 0.2%, even within 0.1% for small cut to size items
IV.Size Tolerance controlled:
Within 1mm for Cut To Size and Raw Glass size( same color glass);
Within 1mm for Cut To Size items 2000mm with Grinded Edges;
Within 1.5mm for Cut To Size Items 3000mm with Grinded Edges;
V. Strict Control on Visible Defects and Chips
VI.Solutions of Breakage Problem in Transportation:

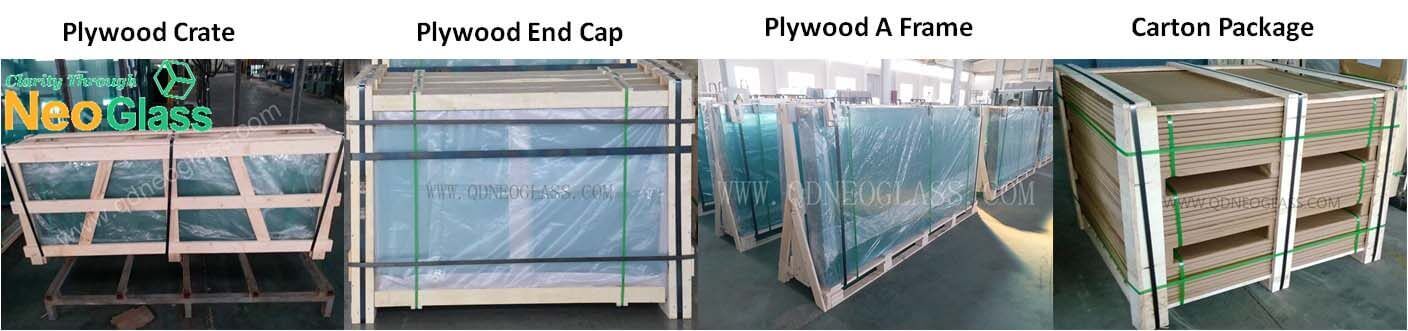

1. Unique Professional & Stonge package--Plywood End Cap ,Plywood crate, Plywood A Frame, Metal Package etc;

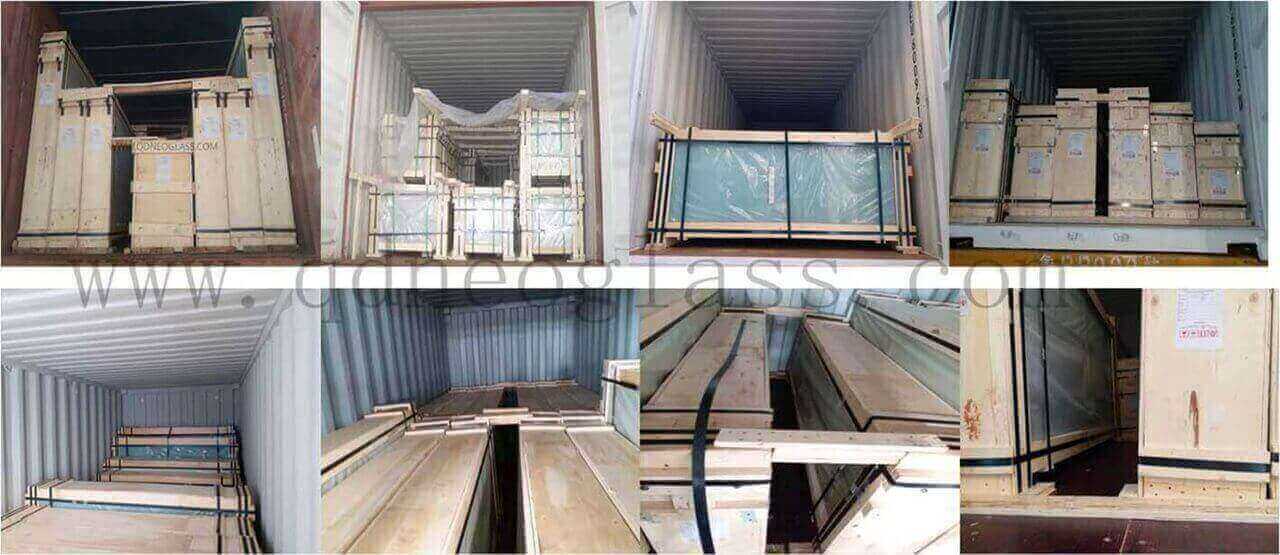

2. Container Loaded technology
VII.Thickness: 4.35-32.28mm;
Size: Cut to Size, Custom-made, Max 18000mm
On-Time Delivery
Delivery time for big size is in 10-18 days and for custom-made items in 18-28 days. If clients have special requirement on that, we would try our best to make some adjustment to satisfy with them.
Size: Max. 18000 mm, Custom-made Sizes are available
Thickness: Min 4.38mm
Certificates: AS/NZS 2208: 1996, CE, ISO 9002
Raw Glass: Float Glass, Annealed Glass, Patterned Glass, Low E Glass, Low Iron Glass
Glass Process:
Float Glass with Edgework, Tempered Glass with or W/O Hole or Cutouts or
Ceramic Frit, Heat Strengthened Glass,Silver Mirror, Back Painted Glass
Glass Color: Clear, Low Iron, Grey,F-Green, Blue Etc
Glass Interleave: Qualified China PVB, Solutia PVB, Dopunt PVB, Dopunt SGP
or other brand appointed by customers
Interleave Color: Clear, White Translucent, Grey, Bronze, F-Green, Blue etc.
Interleave thickness: PVB-0.38mm, 0.76mm,1.14mm, 1.52mm
SGP-0.89mm, 1.52mm, 2.28mm
Package: Plywood End Cap, Plywood Crate, Metal End Cap, Naked Package for A Fame,
Carton Package, Pallet Etc.
We have a Laminated Glass Cutting Machine to cut our big Laminated Glass to be small size. That machine is more efficiency in the cutting than it does by hand-man. Then delivery time is faster.
